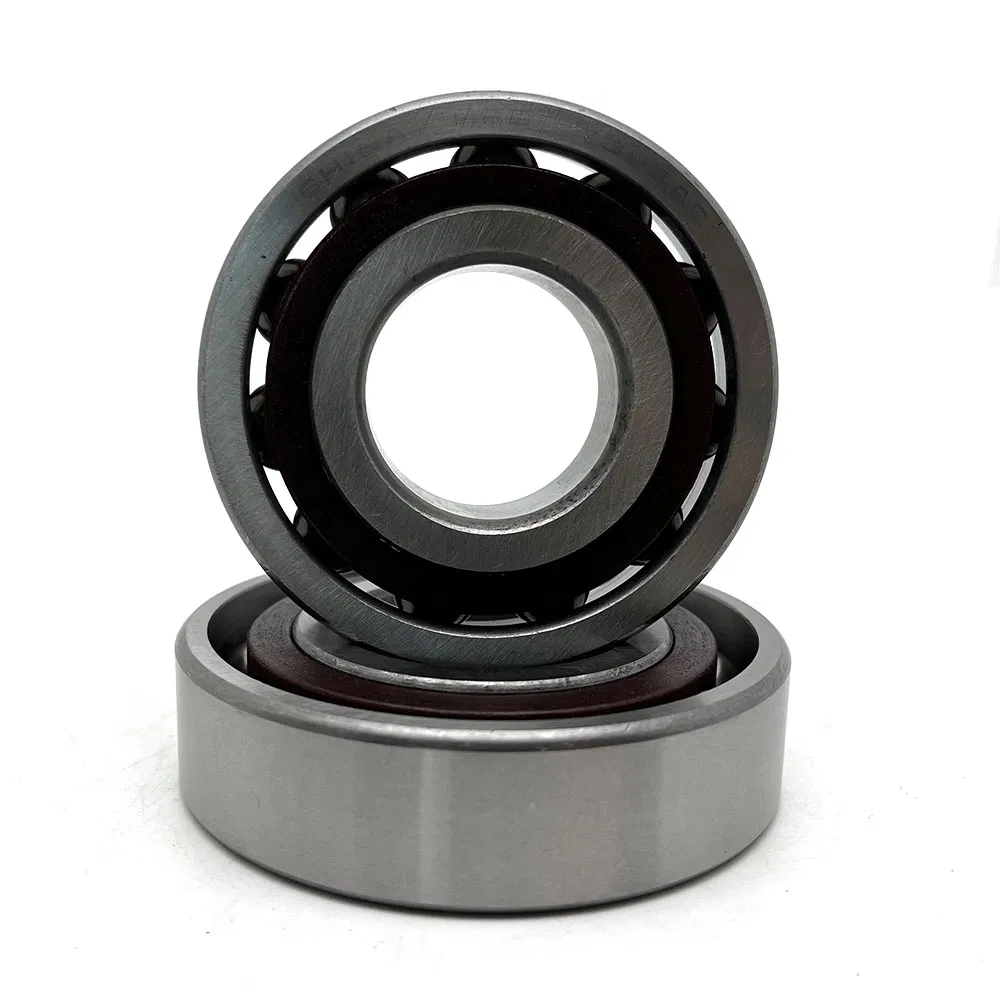

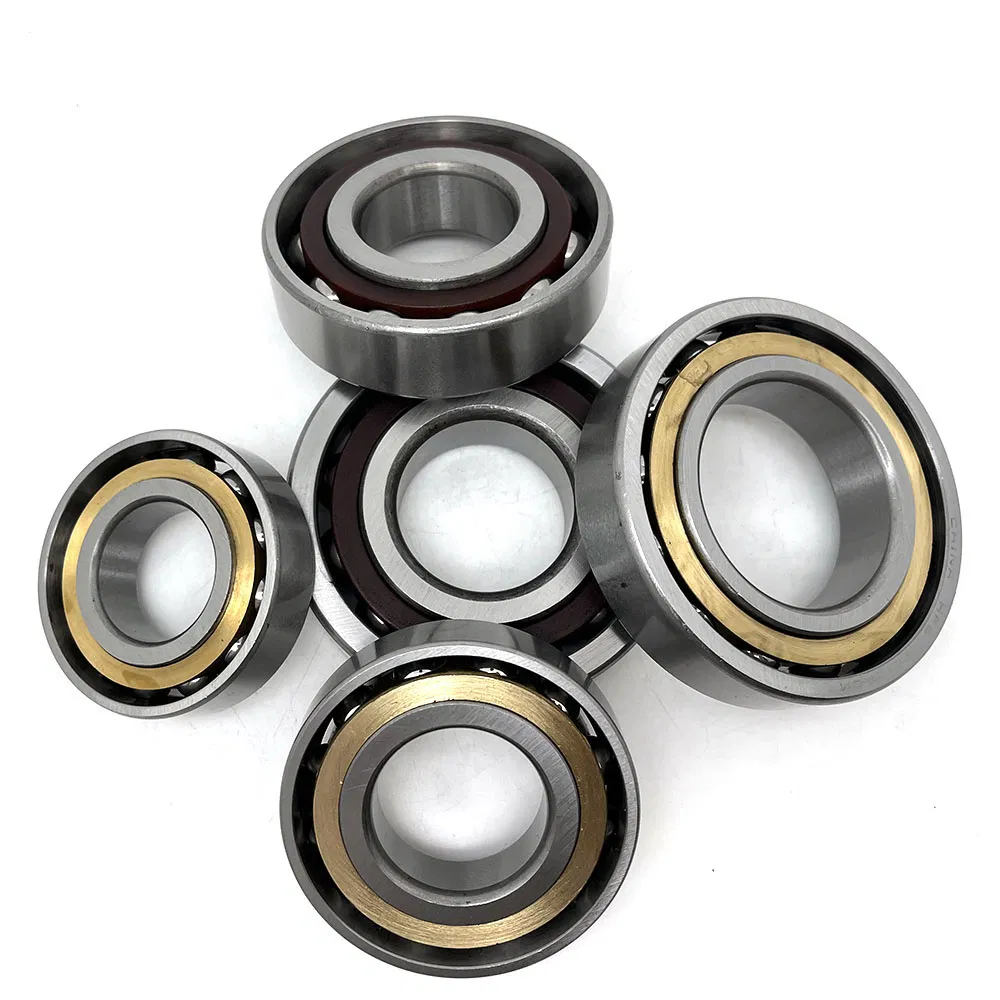

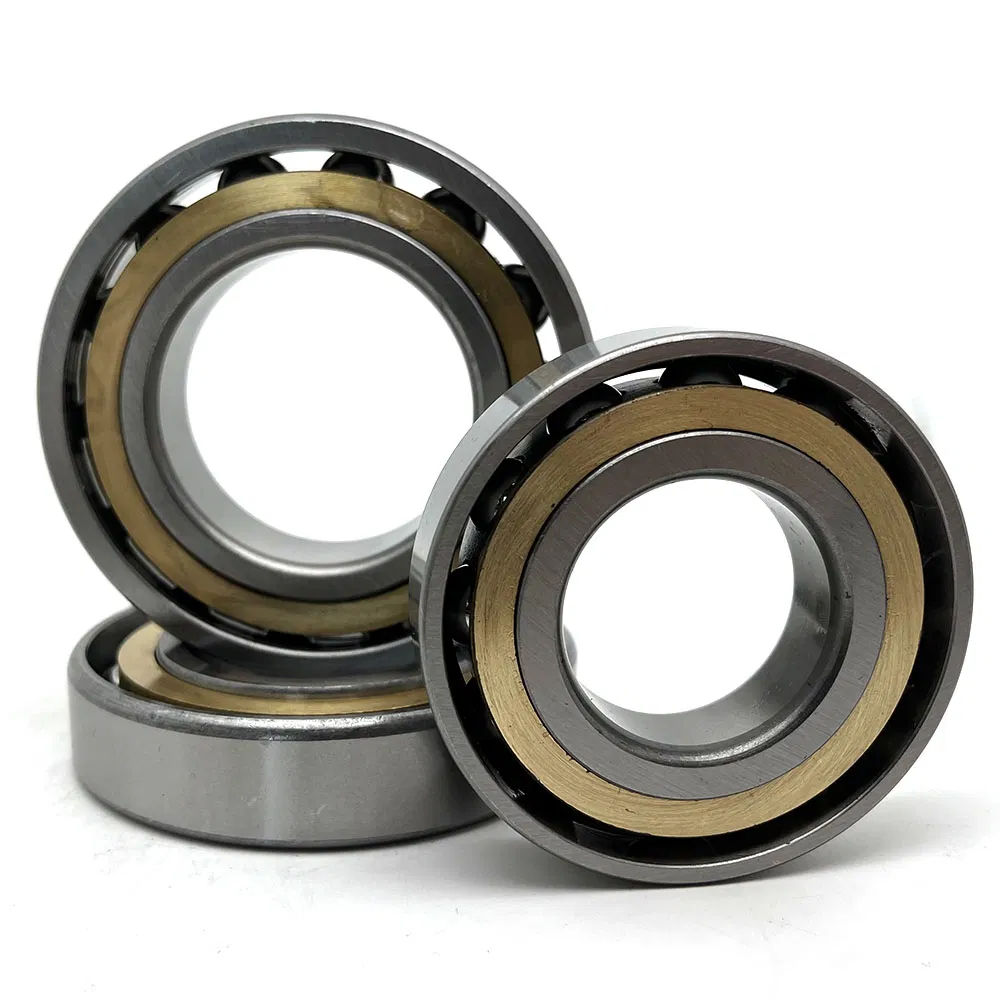

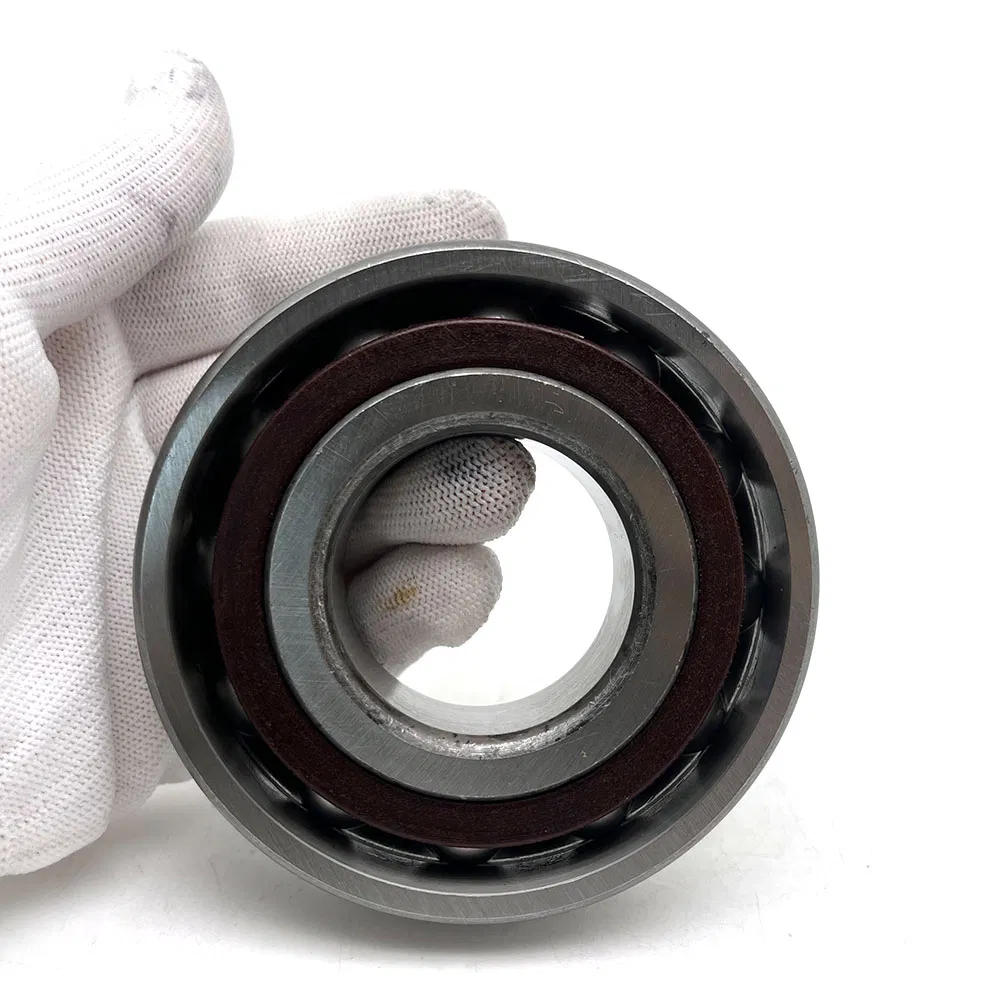

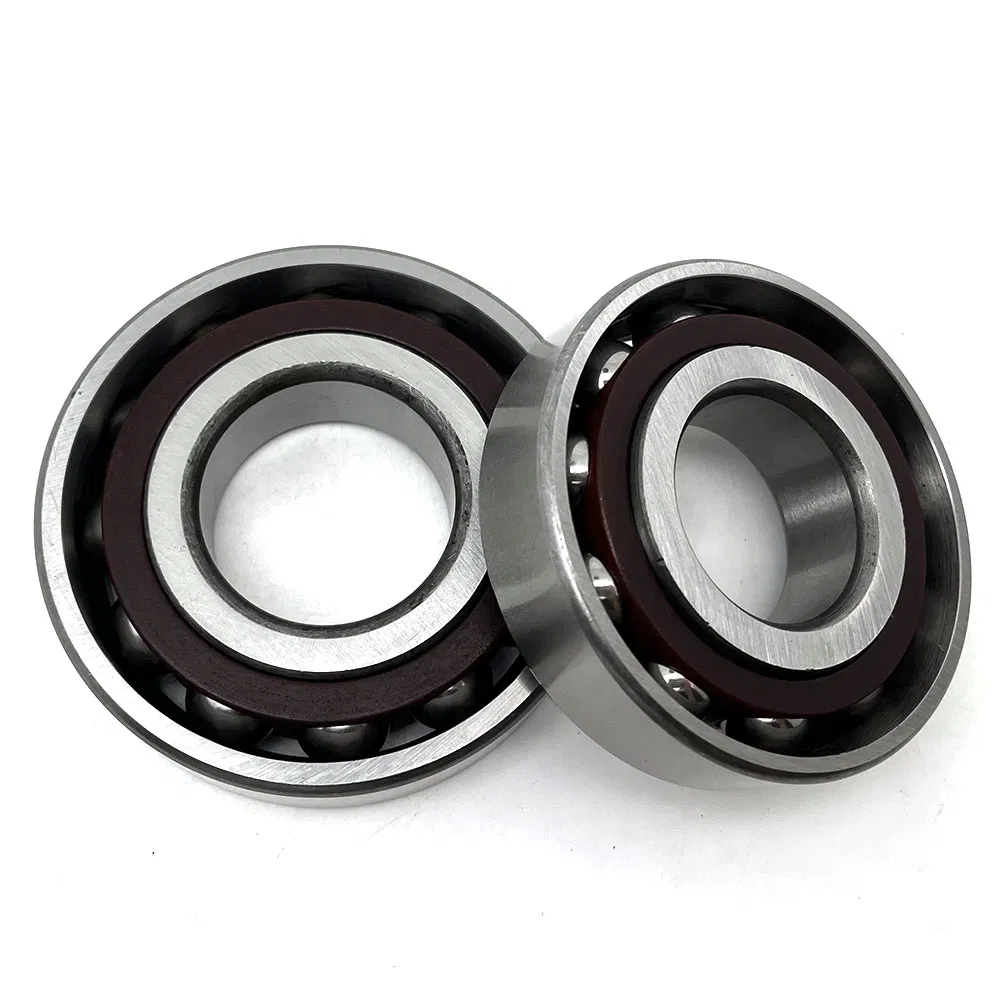

📋 Basic Information
Model NO.
7209 7210 7211 7213 7009
Load Direction
Radial Bearing
Material
Stainless Steel / Chrome Steel GCR15
Type
Angular Contact Ball Bearing
Precision Rating
P0 P6 P5 P4 P2
Vibration
Z1V1 Z2V2 Z3V3 Z4V4
🚀 Product Description
Angular contact ball bearings can withstand both radial and axial loads simultaneously. It can operate at a relatively high rotational speed. The larger the contact Angle, the higher the axial load-bearing capacity. The contact Angle is the Angle between the line connecting the contact points of the balls and the raceways in the radial plane and the vertical line of the bearing axis. High-precision and high-speed bearings usually have a contact Angle of 15 degrees. Under the action of axial force, the contact Angle will increase. Both the inner and outer rings of angular contact ball bearings have raceways, and the inner and outer rings can move in opposite directions along the axial direction of the bearing.
| Specification Item |
Details |
| Material | Chrome Steel GCR15 |
| Product Type | Angular contact ball bearing |
| Accuracy | P0 P2 P4 P5 P6 |
| Quality Assurance | 12 months |
| Application | Machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, and more. |
| Quality Control | 100% Inspection |

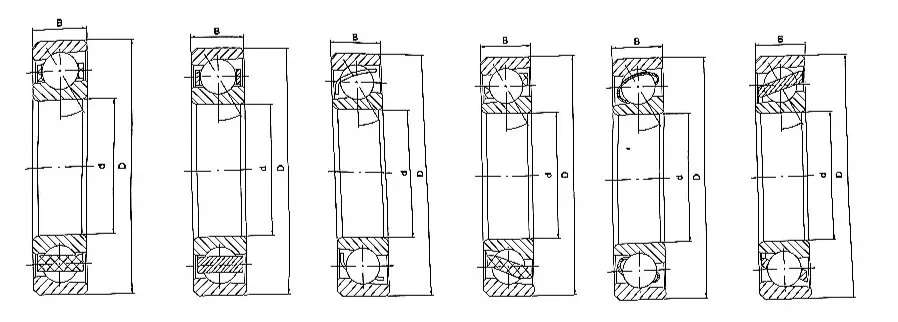

📝 Technical Parameters - Other Models
| Mod. No. |
d (mm) |
D (mm) |
Height |
Cr (kN) |
Cor (kN) |
Grease (r/min) |
Oil (r/min) |
Weight (kg) |
| 7010C | 50 | 80 | 16 | 26 | 21.9 | 13000 | 17000 | 0.29 |
| 7010AC | 50 | 80 | 16 | 23.6 | 20.1 | 9200 | 11000 | 0.29 |
| 7210C | 50 | 90 | 20 | 42.8 | 31.8 | 12000 | 16000 | 0.485 |
| 7210AC | 50 | 90 | 20 | 39.4 | 41.3 | 8500 | 11000 | 0.485 |
| 7210B | 50 | 90 | 20 | 37.5 | 26.7 | 6400 | 8500 | 0.485 |
| 7310B | 50 | 110 | 27 | 64.4 | 44.3 | 5500 | 7300 | 1.14 |
| 7011C | 55 | 90 | 18 | 34.1 | 28.6 | 11000 | 15000 | 0.42 |
| 7211C | 55 | 100 | 21 | 52.9 | 40.2 | 11000 | 14000 | 0.635 |
| 7212C | 60 | 110 | 22 | 64 | 49.5 | 9500 | 13000 | 0.82 |
| 7213C | 65 | 120 | 23 | 73.1 | 58.7 | 8900 | 12000 | 1.02 |

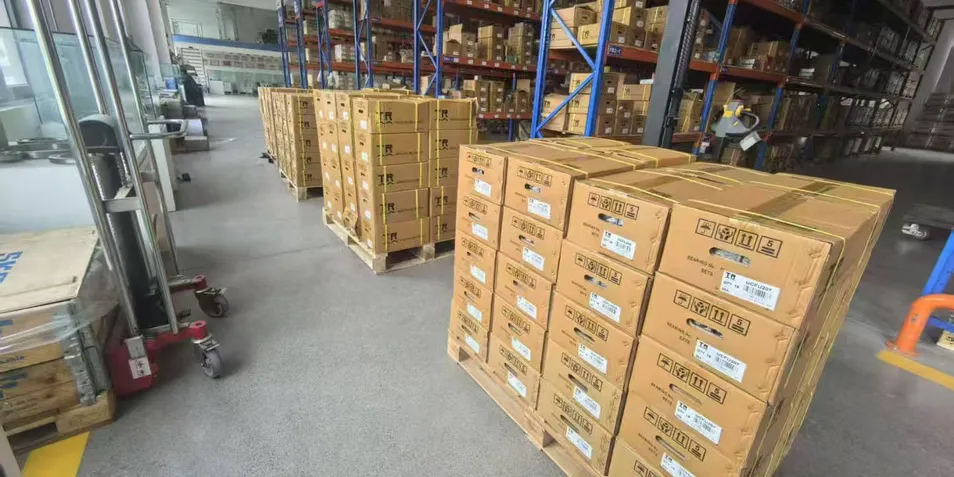

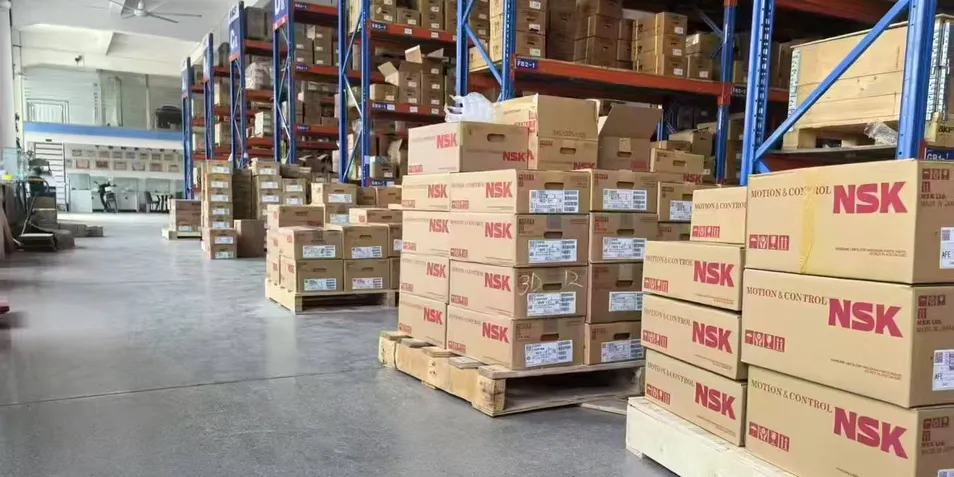

📦 Packing & Delivery
1. Industrial Packing (Plastic Tube Packing; Paper Rolling Packing etc.)
2. Single Box Packing (White Box Packing; Color Box Packing)
3. Carton Box + Pallet
⭐ Why Choose Us
-
01
Quality Control: Strict supplier evaluations, in-coming inspections, in-process inspections, and pre-delivery inspections to ensure the highest product standards.
-
02

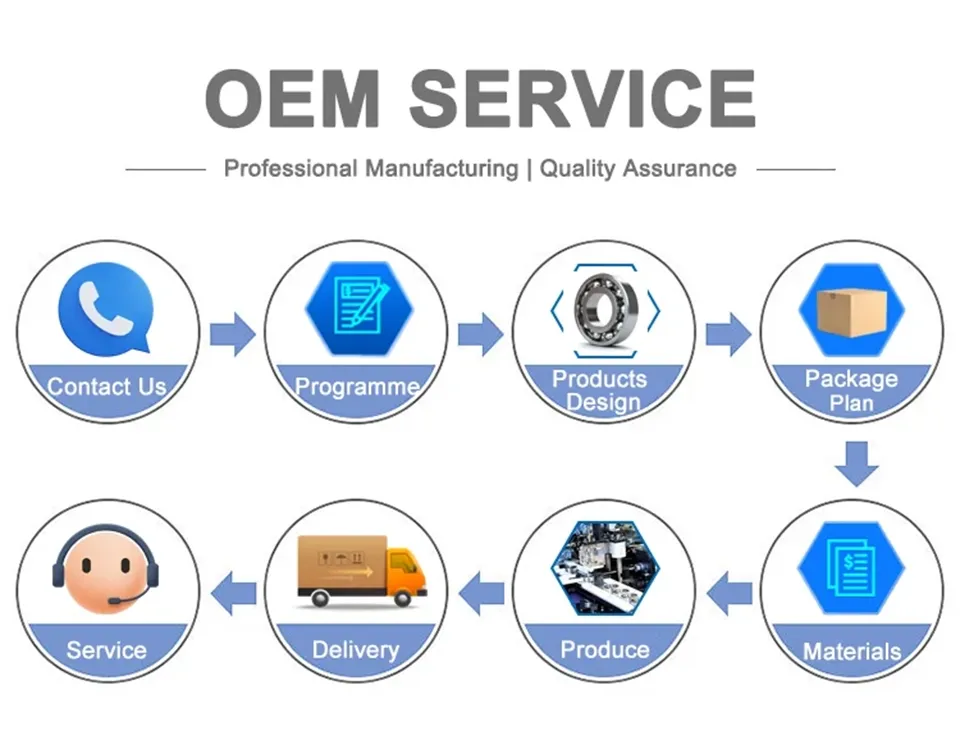

OEM Ability: Stable long-term relationships for ODM, OEM, and Agent services for customers worldwide.
-
03
Parts Available: Large inventory of spare bearings for immediate delivery globally, covering sectors like mining, automotive, and power.
-
04
Reliable Warranty: We prioritize customer satisfaction with dependable warranties and robust after-sales support.
❓ Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The MOQ can be negotiated. We strive to meet our customers' needs; however, as a wholesale-based company, most orders typically exceed 1 ton.
What is the estimated delivery time?
Most standard orders are shipped within 7-15 days after payment is received.
Do your products come with quality assurance?
Yes, our company provides a quality assurance period of 1 year.
What are the competitive advantages of your bearings?

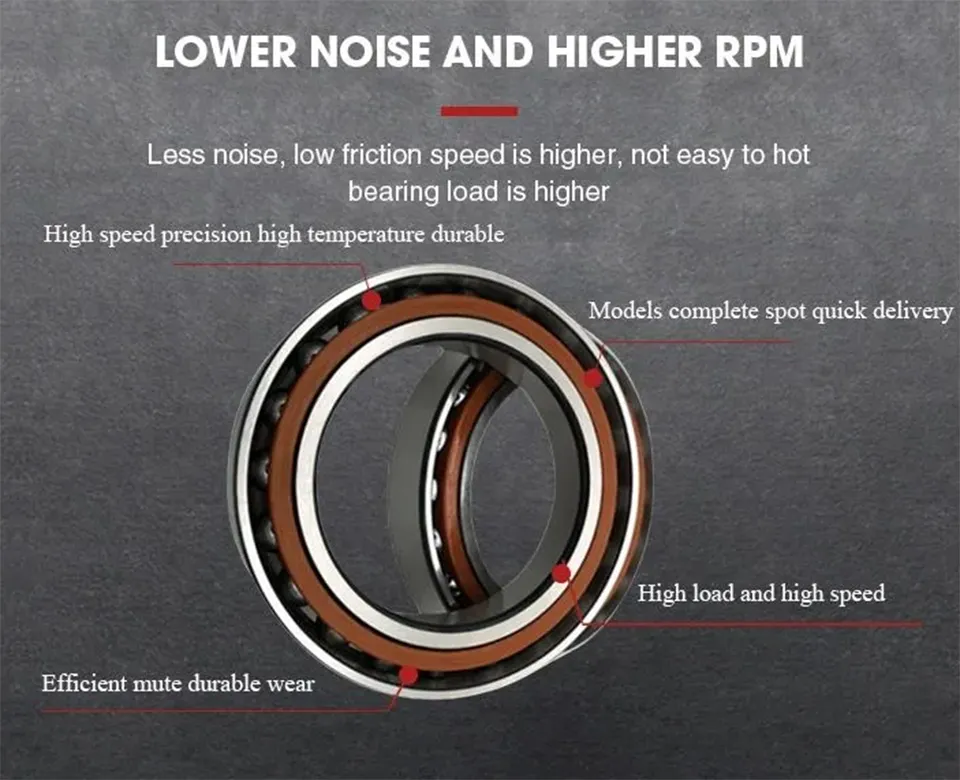

Our products are known for high precision, high rotational speed capabilities, and low noise levels.
What services do you provide compared to others?
We offer 24-hour online support, timely replies, and assist with all necessary customs clearance documentation. We provide 100% after-sales service.
What payment methods are supported?
We do our best to meet customer requirements; payment terms are negotiable based on order specifics.
KINDLY REMIND:
To guarantee bearing working life, please carefully install and maintain:
1. Open the package only before installation to protect from rust.
2. Ensure the working area is clean.
3. Strictly follow capacity, temperature, and working time limits.
