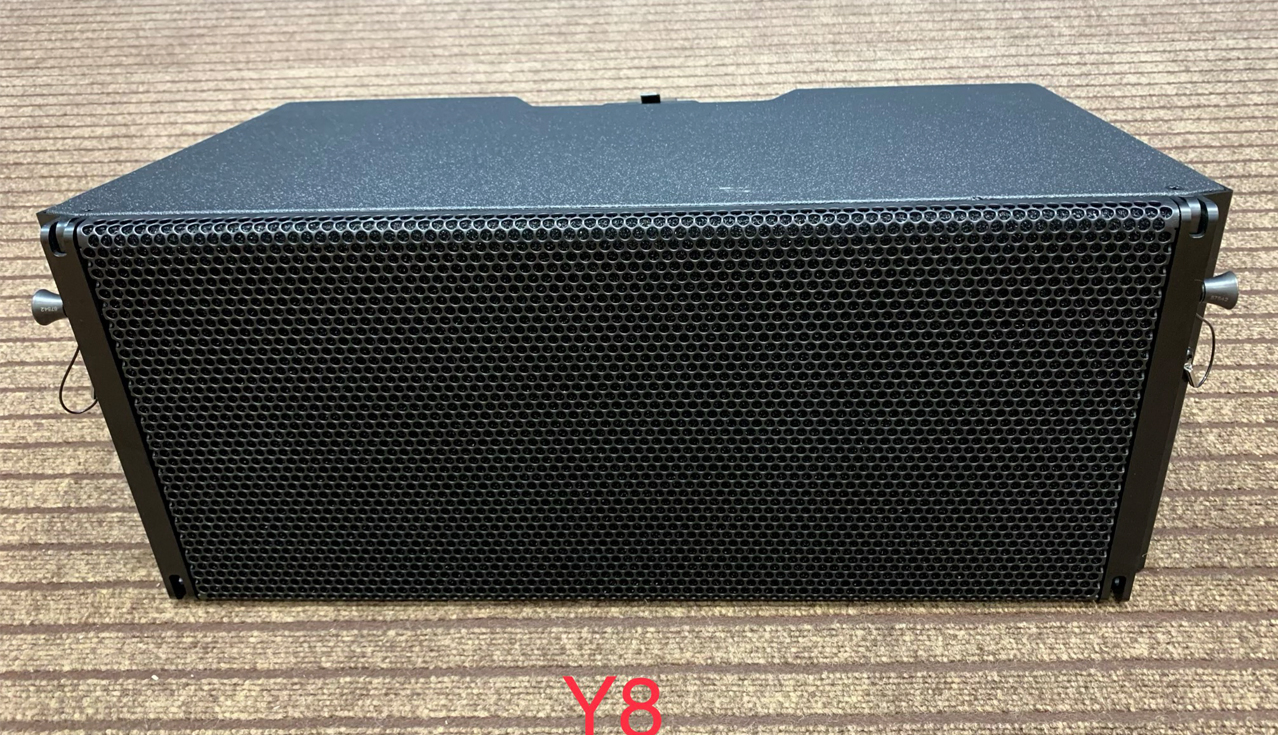

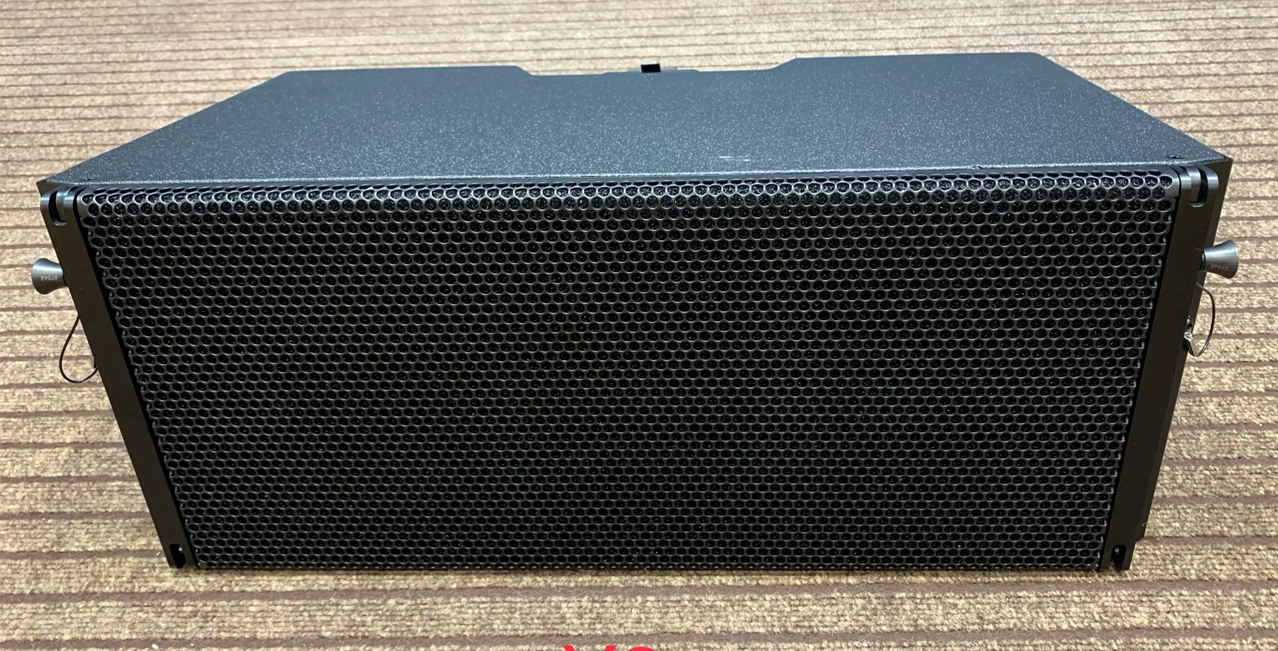

Compact Y8 Linear Array Speaker with 1 4" Export Reciprocating Driver

Customization: Available
Activity: Active
Speaker Material: Quality Baltic Birch Plywood

Product Description

Basic Specifications
Model NO.
Y8
Application
Commercial, Home
LF
2 x 8" Drive Units with Neodymium Magnet
HF
1.4" Export Reciprocating Drive Unit
Power Capability
400/1600 W
Max SPL
D6: 134 dB, D12: 137 dB, D80: 139 dB
Nominal Impedance
8 Ohm
Frequency Response
60 Hz - 18 kHz
Spread Angle
80° (Horizontal)
Connection
2 Nlt4 F/M
Size (H x W x D)
257 x 630 x 375 mm
Weight
20.5 Kilograms
Origin
China
Product Description

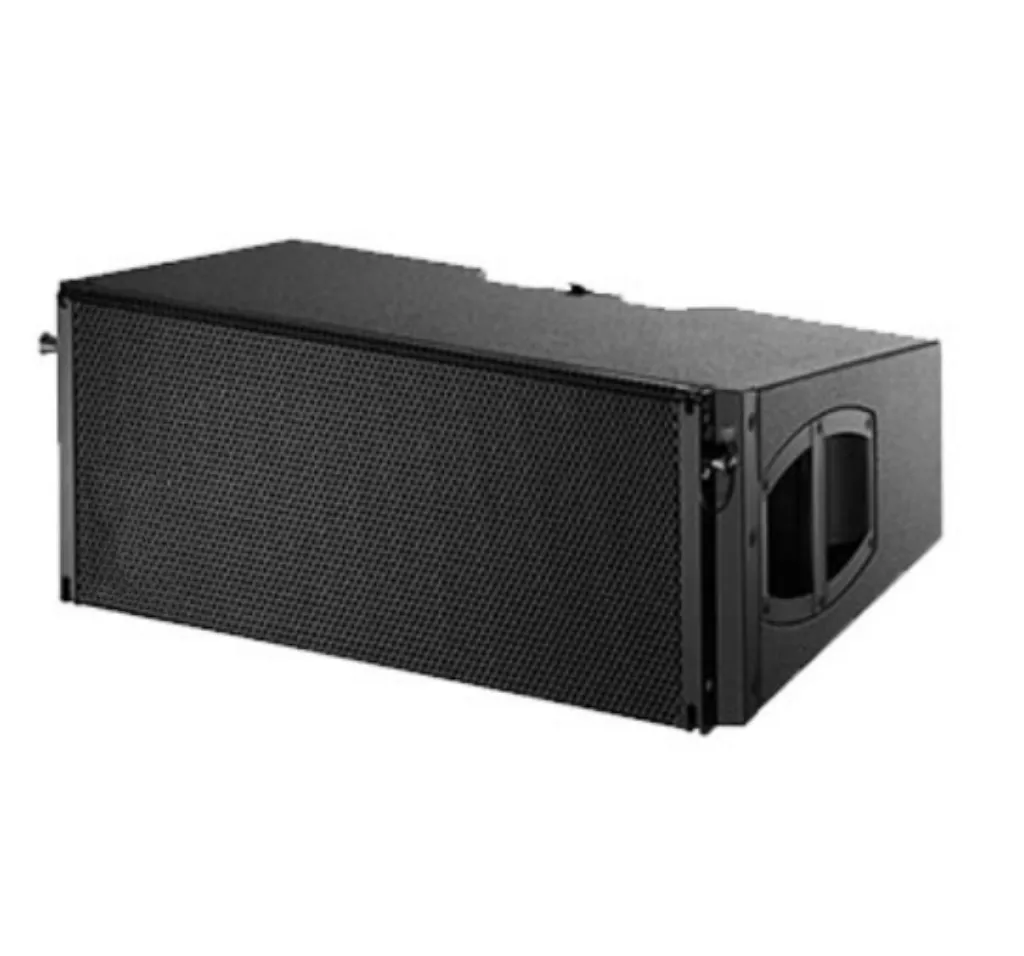

Y8 Linear Array Speaker Overview
🔊

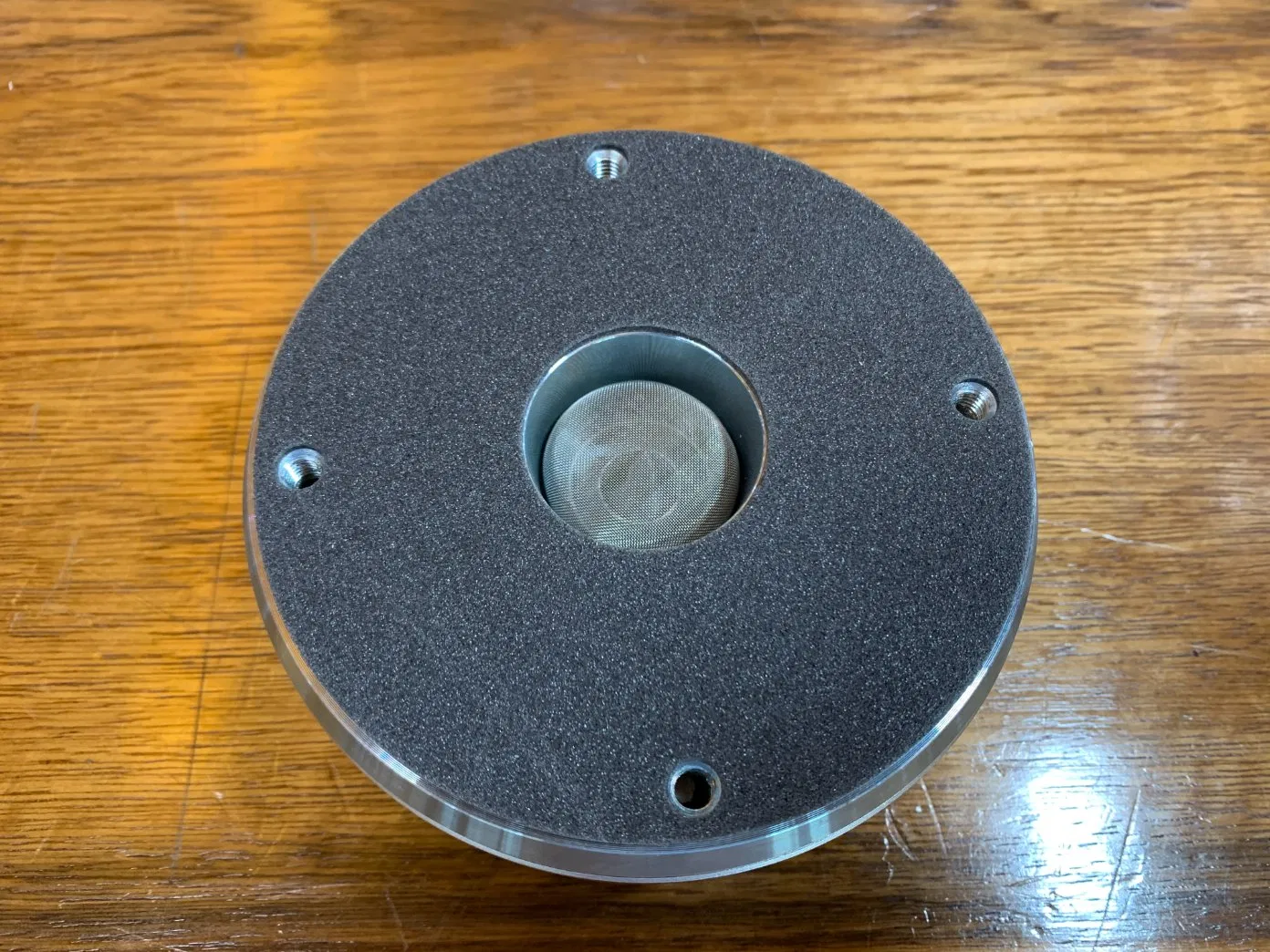

Introducing the Compact Y8 Linear Array Speaker: a true marvel in the realm of audio performance, meticulously designed for vertical arrays. This passive wonder features dual 8-inch neodymium drivers arranged in an omnidirectional setup, complemented by a centrally positioned 1.4-inch compression driver, seamlessly integrated with a precision-engineered waveguide.
Y8 Speaker Construction

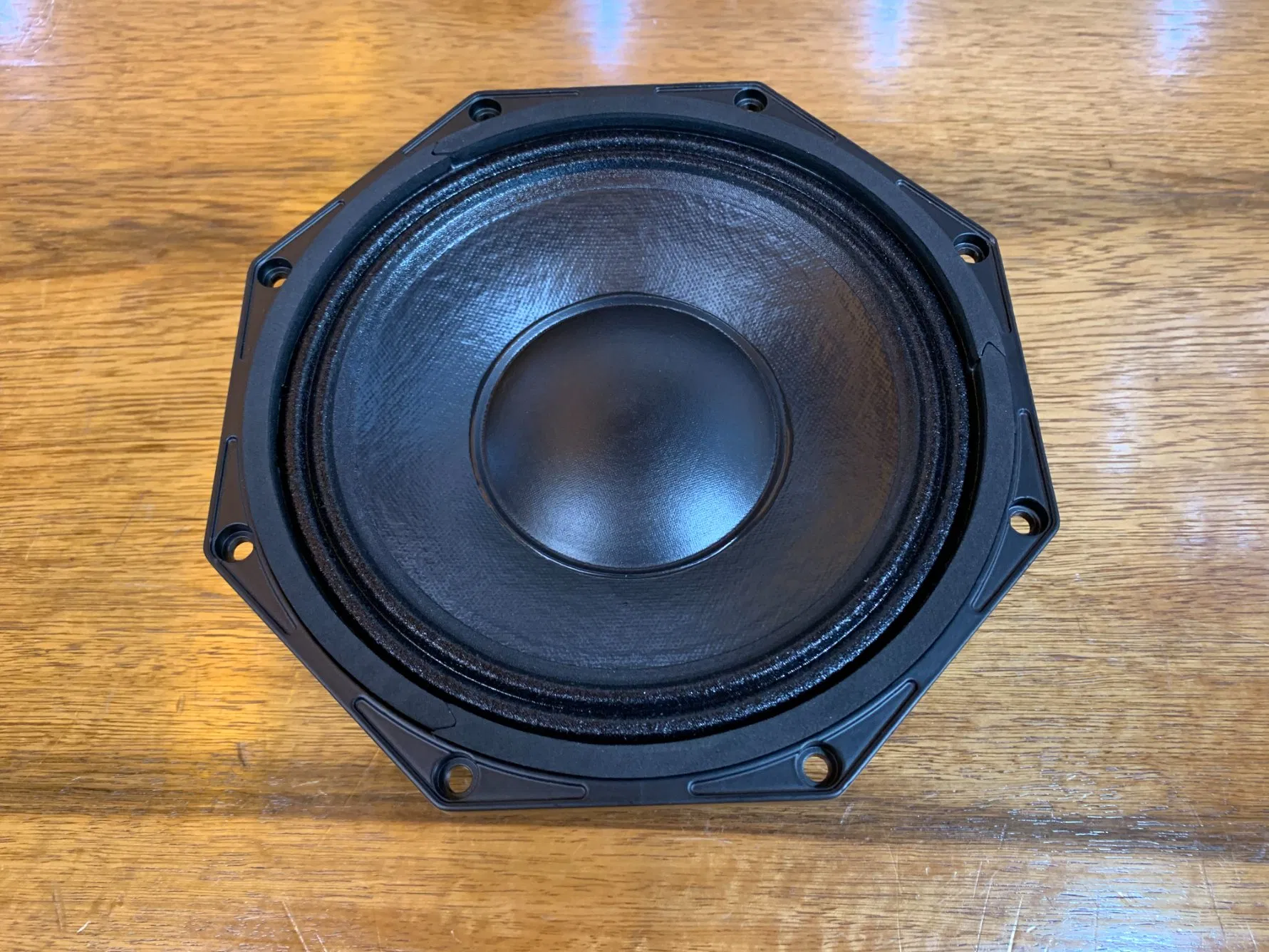

Compact Y8 Driver Detail

Experience the symphony of precise horn geometry combined with an advanced low-bass port design, delivering an expansive full bandwidth with remarkable low-frequency proficiency. Achieve unrivaled sound mastery with an 80° horizontal dispersion, effortlessly extending to 500 Hz.

Ingeniously crafted for vertical arrays of up to twenty-four cabinets, this speaker enables precise vertical angle adjustments ranging from 0° to 14°, with pinpoint 1° accuracy.

Speaker Panel Layout

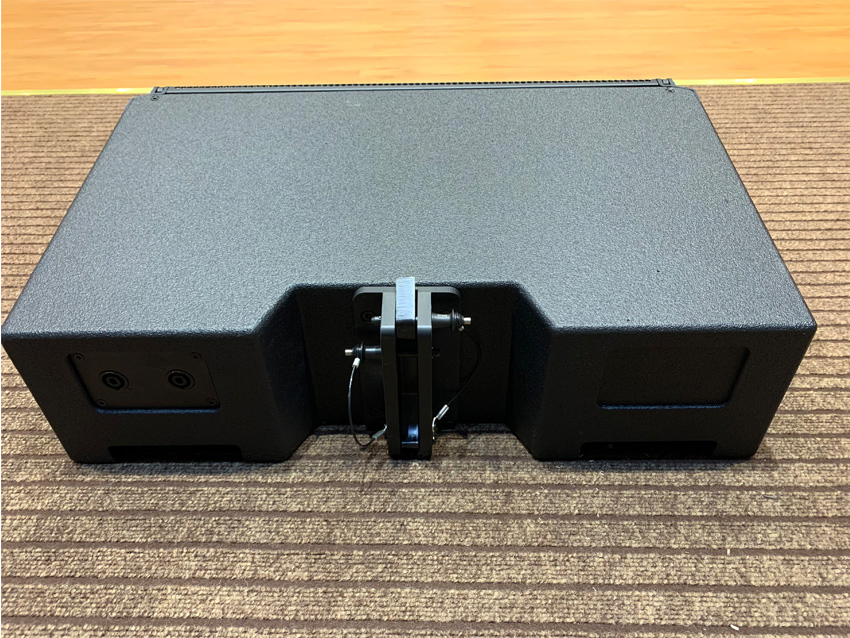

Built to endure the harshest conditions, the speaker boasts resilient waterproof plywood construction, fortified by a durable weatherproof PCP (Polyurea Cabinet Protection) coating. Its robust front panel is safeguarded by a metal grille, lined with acoustically transparent fabric. Designed for utmost user comfort, each side panel is equipped with a handle, while the rear panel features two recessed handles, augmented by an advanced three-point suspension system.

Technical Specifications Drawing

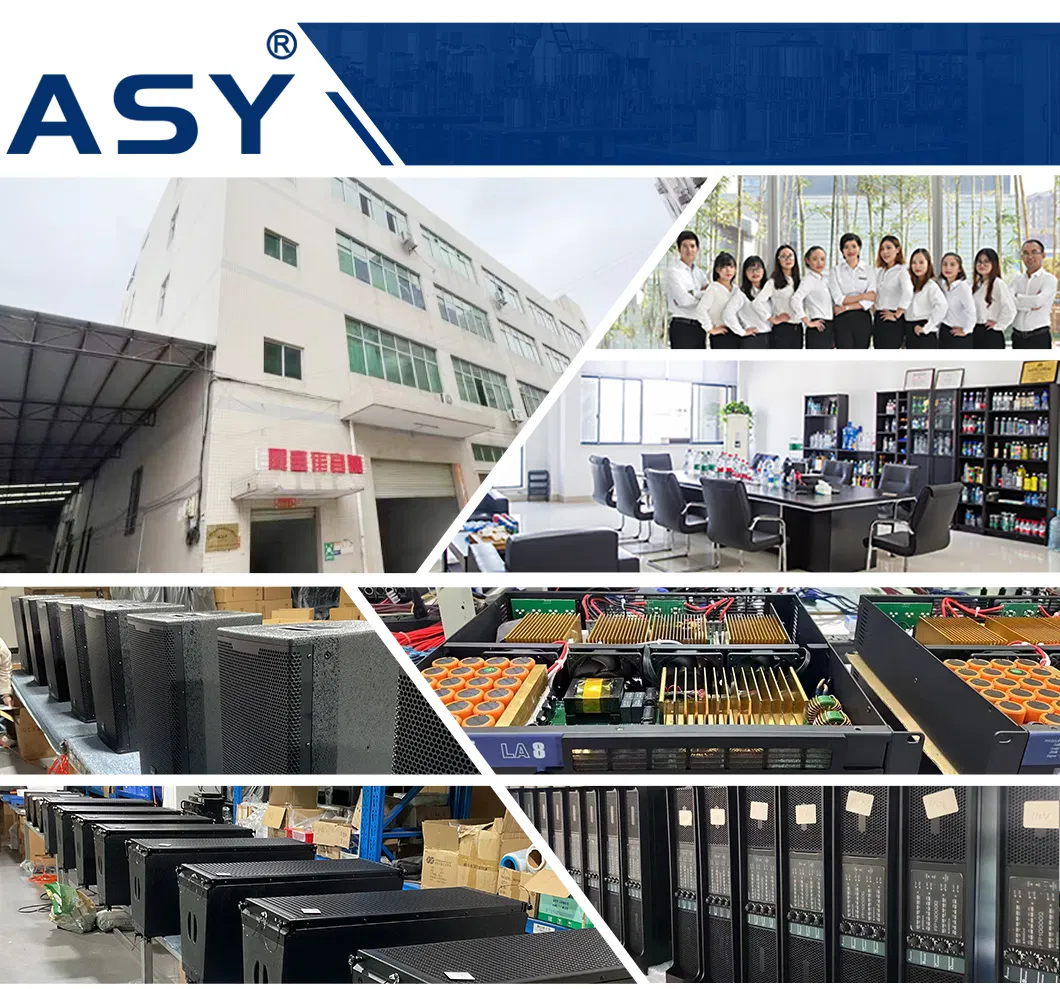

Professional Engineering & Manufacturing

As a beacon of audio innovation with a history spanning 25 years, we excel in audio product research, development, and design. Powered by decades of amplification and R&D expertise, we possess formidable capabilities in production, sales, and comprehensive technical services.

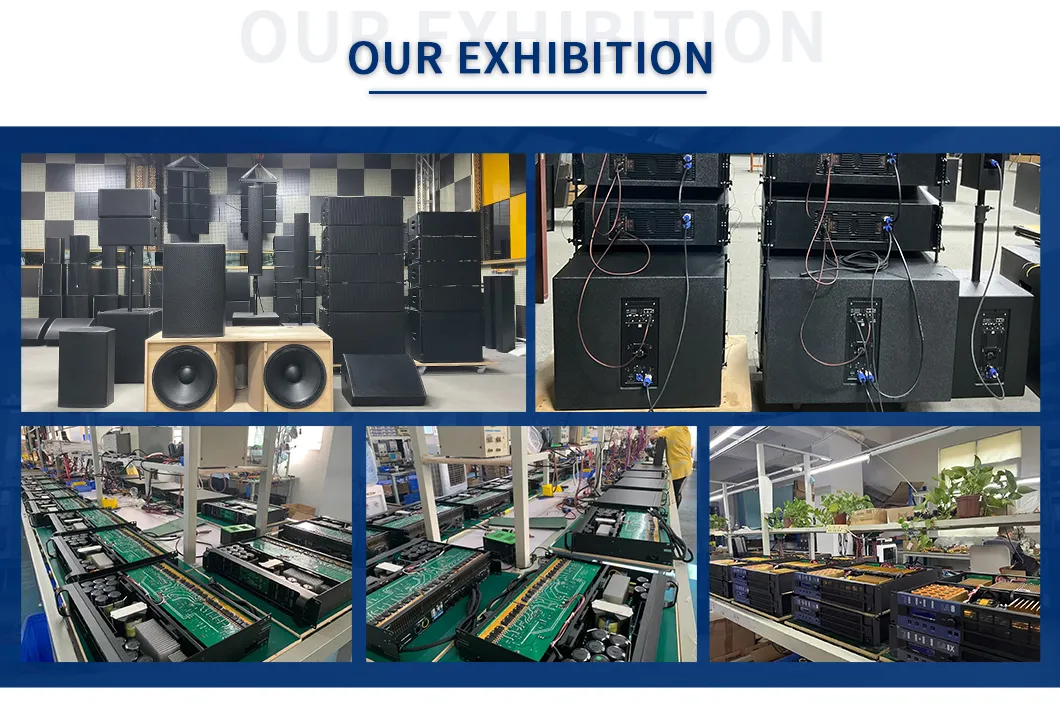

Our facilities host a dynamic product development team and cutting-edge specialized laboratories. Featuring top-tier German DASS and US LMS audio testing systems, alongside MARTIN and IWATSW oscilloscopes, our testing suite ensures unmatched precision and quality. Our advanced HIFI technology masterfully blends delicate vocals with deep, resonant bass and perfectly balanced mid-high frequencies.

Manufacturing Standards Quality Control Testing

Our distinguished product catalog features renowned components from brands like B&C, RCF, Faital, and CELESTION, alongside esteemed German BMS units. We undertake expansive projects, equipping gymnasiums, school playgrounds, theaters, opera houses, and conference halls with comprehensive engineering solutions, including consultancy, installation, and meticulous commissioning.

Line Array Configuration
Frequently Asked Questions
Can I obtain samples of the Y8 Linear Array?
Yes, sample orders are available for testing and quality evaluation.
Do you support custom logos or branding (OEM/ODM)?
Yes, we offer comprehensive OEM and ODM services. Your specific logo and design can be integrated into the products.
Are you a direct manufacturer?
Yes, we are a professional audio manufacturer with a dedicated production facility. We specialize in providing high-quality engineering and manufacturing services.
What is the expected delivery timeline?
Sample orders are typically sent via Express and arrive approximately 3-5 days after funds are received. Batch orders are produced promptly while maintaining strict quality control standards.
What transportation methods are available?
Samples are usually delivered via Express (DHL, Fedex, TNT, or EMS). For larger batch orders, sea freight is recommended as a more economical solution.
Is the cabinet protected against outdoor conditions?
Yes, the speaker is constructed with waterproof plywood and treated with a weatherproof PCP (Polyurea Cabinet Protection) coating for enhanced durability.
