Key Specifications
⚙️
Activity:
Passive
🎮
Operation:
Wire / Remote Control
🏗️
Material:
Wood / Plywood
🏢
Application:
Commercial / Events
📜
Certification:
CE
🔊
Type:
Dual-Drivers Sub-Bass System
⚡
Power:
1600W(RMS) / 6400W(Peak)
📉
Impedance:
4 Ohm
Product Overview

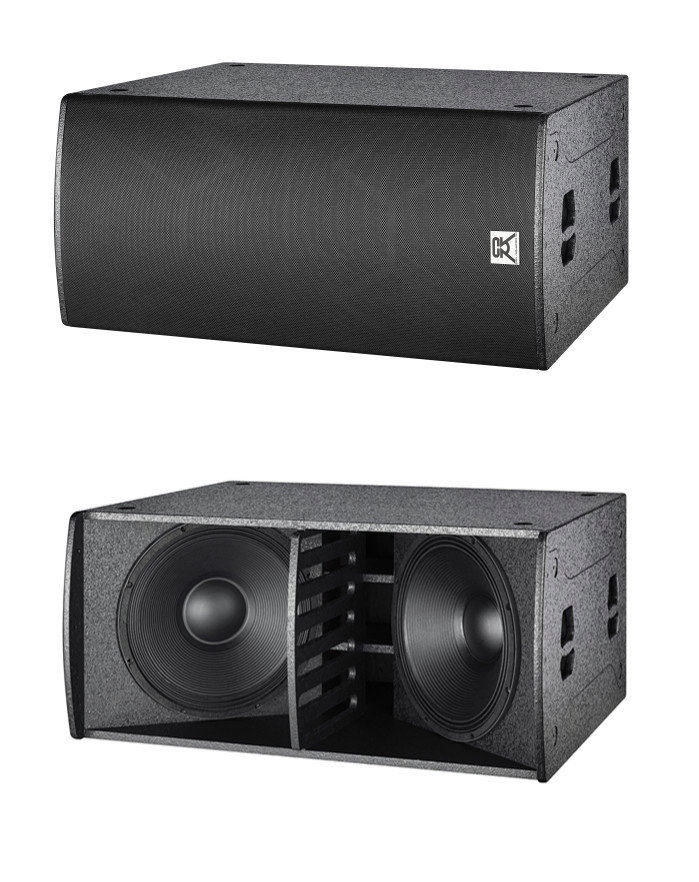

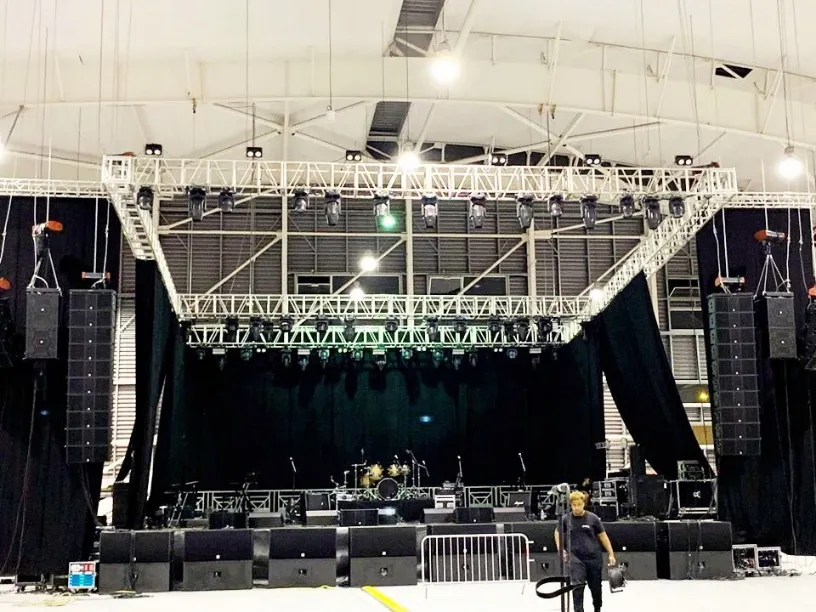

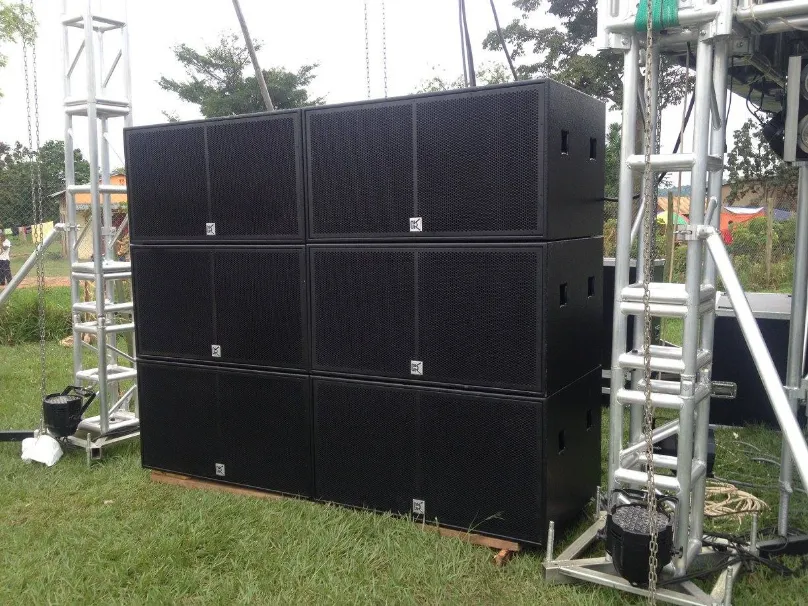

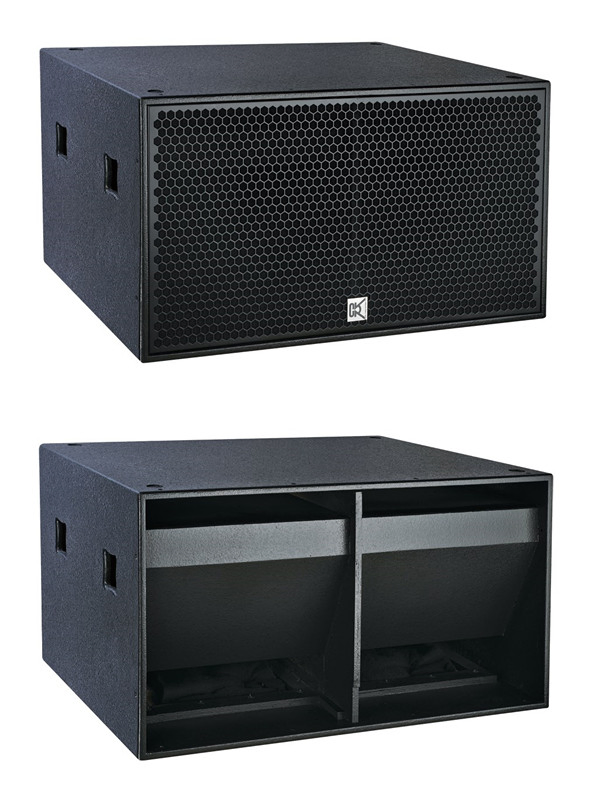

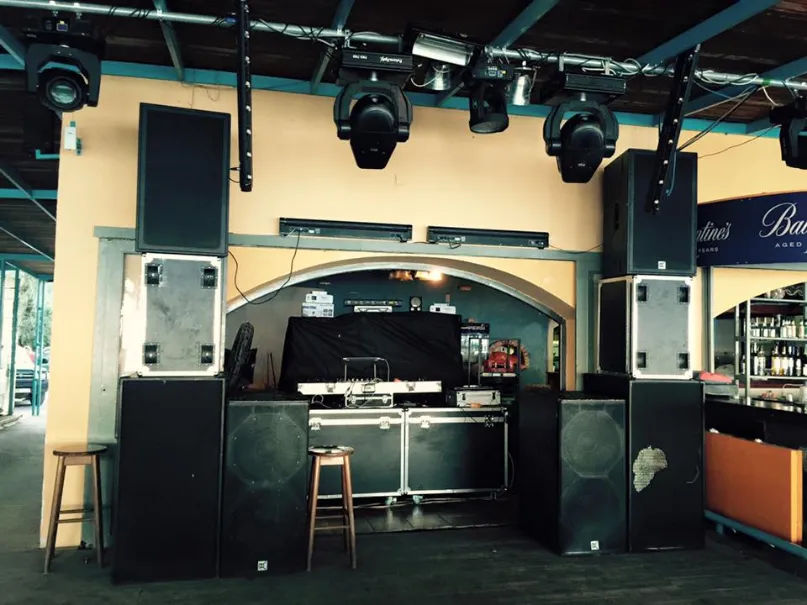

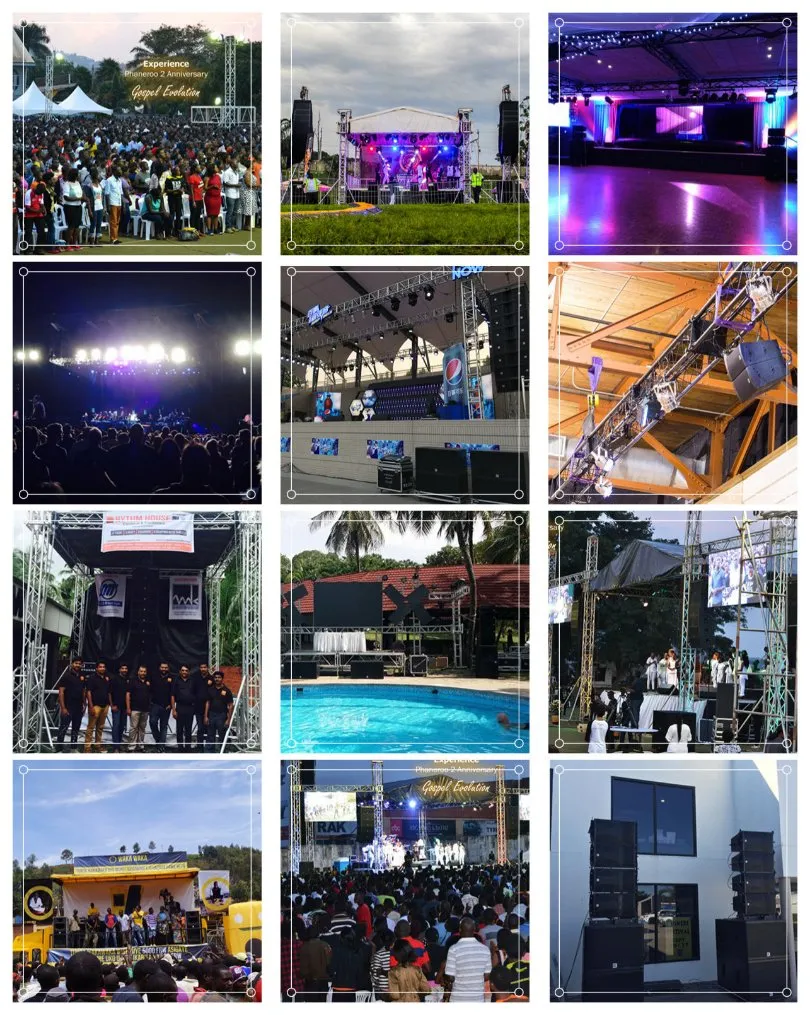

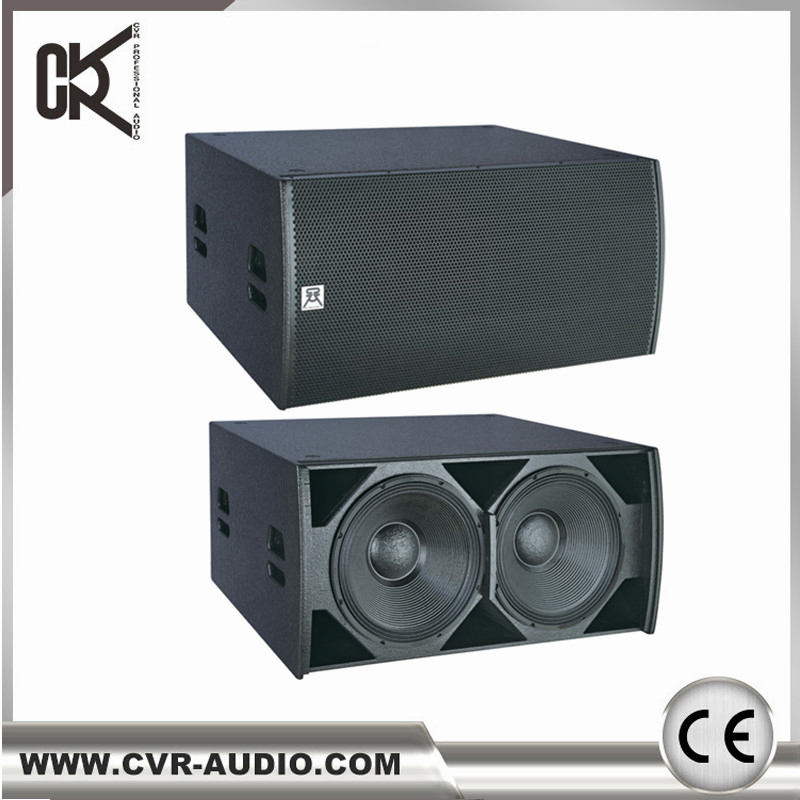

T-218 is a dual 18" subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required.
Technical Data Sheet
| Model | T-218B |
| Type | Dual-drivers sub-bass system |
| Frequency Response | 35Hz-500Hz±3dB |
| Power handling | 1600W(RMS) 6400W(PEAK) |
| Sensitivity | 103dB(1W@1M) |
| Max SPL | 134dB(PEAK/1M) |
| Drivers | 2×18"(460mm) woofer 100mm(4in) coil |
| Nominal impedance | 4 ohm |
| Finish | Textured paint |
| Enclosure Material | Plywood |
| Dimensions | 546×1130×780mm (W×H×D) |
| Net weight | 81kg(T-218B) / 83.5kg (T-218BP) |
Frequently Asked Questions
Q: What is the primary use for the T-218 subwoofer?
A: It is specifically designed for reproducing deep bass in high-demand environments like discos, clubs, and outdoor live shows.
Q: What is the power capacity of this system?
A: The system handles 1600W RMS and can reach a peak power of 6400W.
Q: What materials are used for the enclosure?
A: The enclosure is constructed from high-quality plywood finished with durable textured paint.
Q: What is the frequency response range?
A: The frequency response is 35Hz to 500Hz (±3dB), providing powerful low-end performance.
Q: How much does the unit weigh?
A: The net weight is approximately 81kg for the standard T-218B model.
Q: Is the system active or passive?
A: This is a passive sub-bass system, requiring external amplification.
