| Model NO. | GD-EN 136 |
| Name | Masks Thermal Radiation Resistance Tester |
| Standard | EN 136 |
| Function | Fire Testing Equipment |
| Materials | Stainless Steel |
| Flame Height | Accurate to 40mm±2mm |
| Size | 1400mm(W) * 600mm(D) * 1400mm(H) |
| Power Supply | AC 220V, 50/60Hz, 30A |
| Weight | 80kg |
| Origin | China |

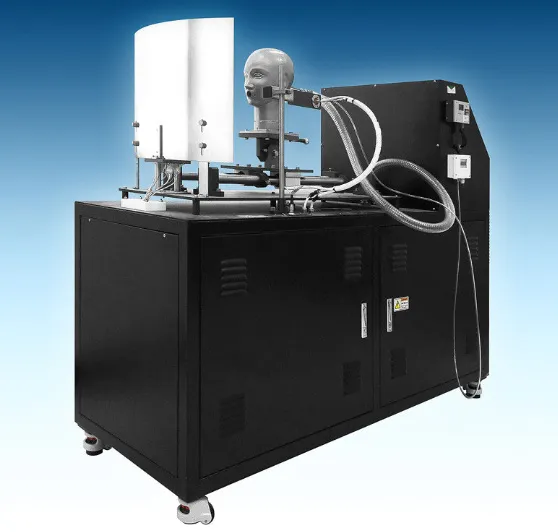

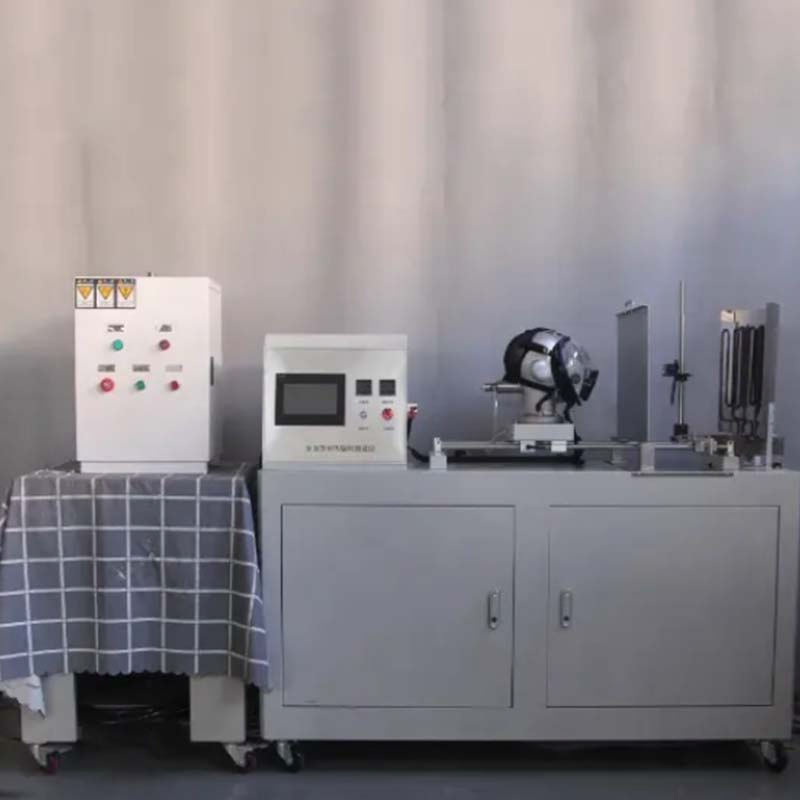

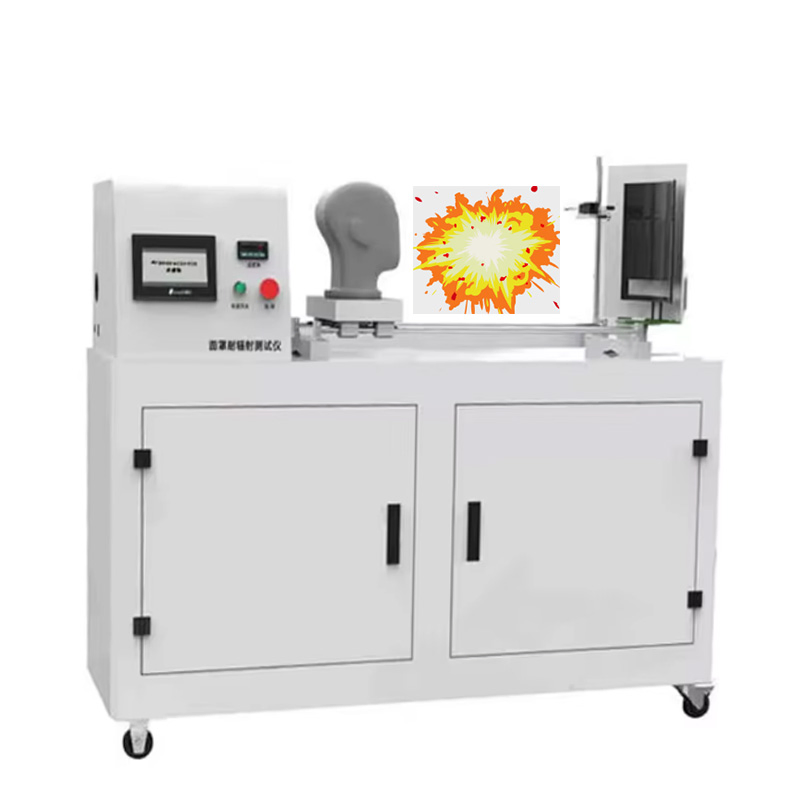

EN 136 Fire Testing to Thermal Radiation Resistance Device

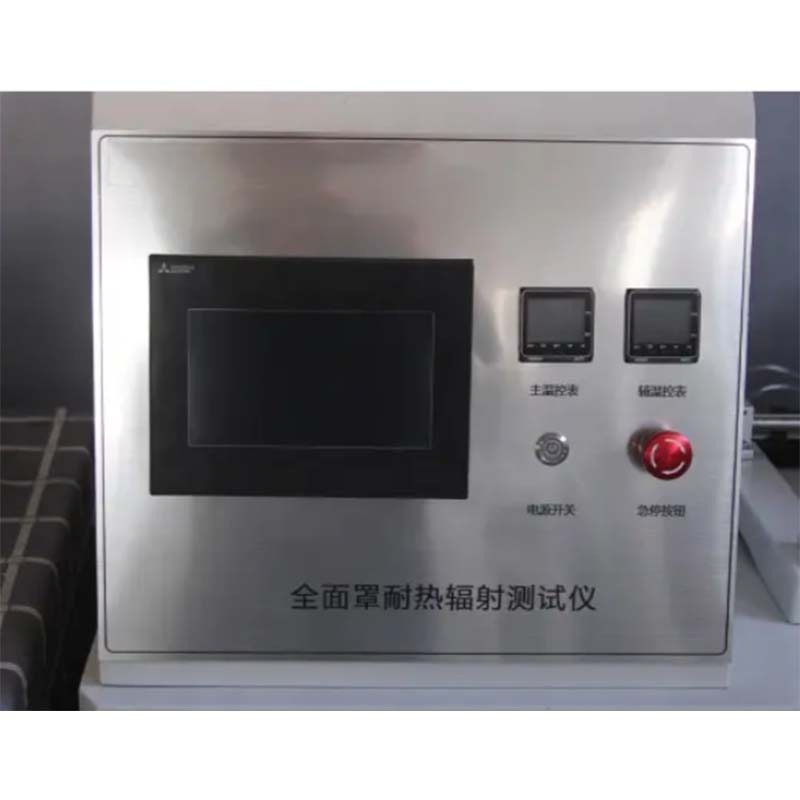

The Full Face Masks Flame Resistance Tester is primarily designed to evaluate the thermal radiation resistance of safety masks. It is an intelligent system featuring touch-screen controls, allowing for flexible testing procedures and automatic result storage. The device is essential for ensuring the quality and safety of fire protective equipment including jackets, bibs, helmets, and gloves.
| Packing Details | Standard wooden case for EN 136 full mask fire resistance tester |
| Available Ports | Shanghai, Guangzhou, Shenzhen, etc. |
| Lead Time | 30 Business Days |
Since 2008, our team has developed over 70 types of fire testing instruments, serving industries such as building materials, aviation, rail, wire & cable, and safety protection. Our mission is to provide reliable products that meet the rigorous requirements of R&D and quality control. We maintain high-quality standards in niche markets, working with trust and honesty to ensure our service remains a top advantage in the industry.
A: The equipment is fully compliant with EN 136 and GBT16556-2007 standards for respiratory protective devices.
A: It features an artificial lung breathing device controlled by a PLC system, providing a sinusoidal output mode that truly simulates human respiratory patterns.
A: The tester is constructed using high-grade stainless steel for the frame, reflective plates, and sample holders to ensure durability and corrosion resistance.

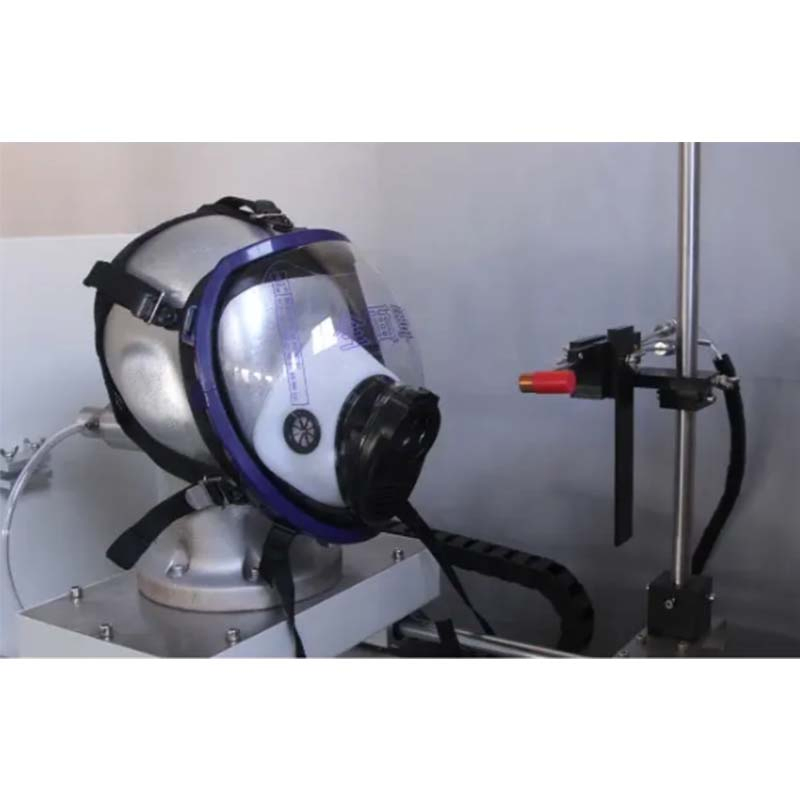

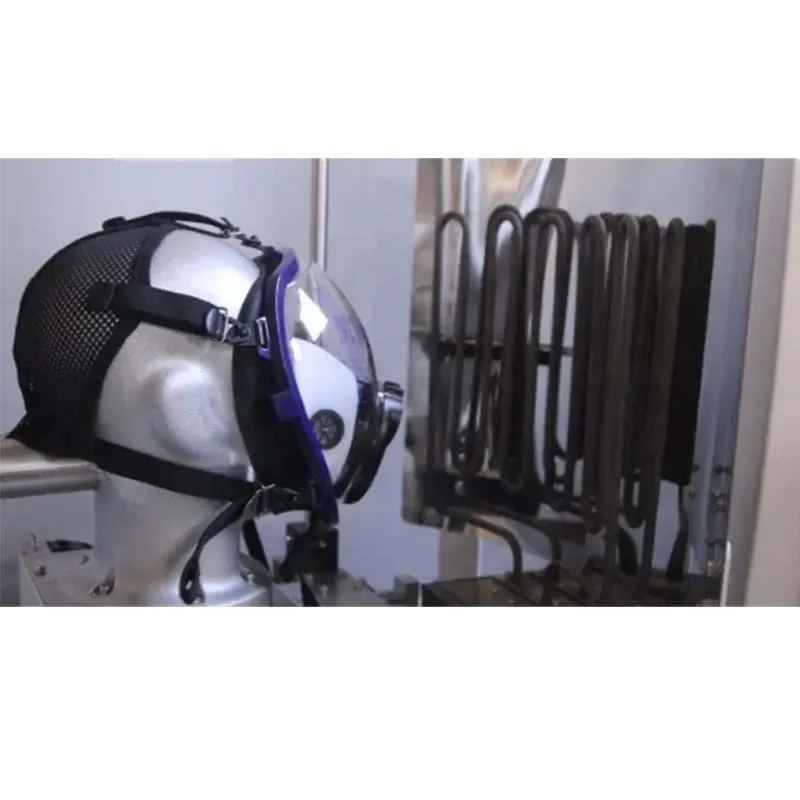

A: Yes, the metal headform is mounted on a sliding track, allowing users to move the horizontal position and adjust the distance to the radiation source precisely.
A: The standard lead time is approximately 30 business days, and the product is shipped in a secure wooden case to ensure safety during transport.
A: Yes, the device features automatic ignition and is programmed to turn off automatically after a 20-second ignition period.
