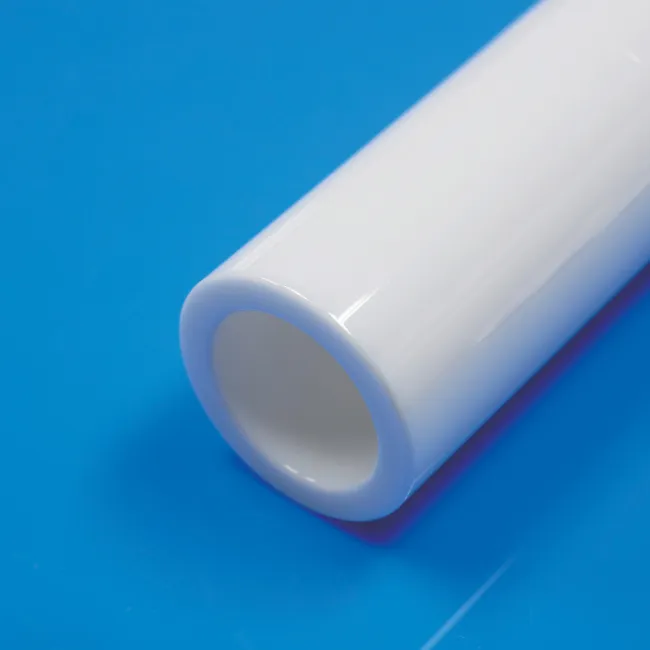

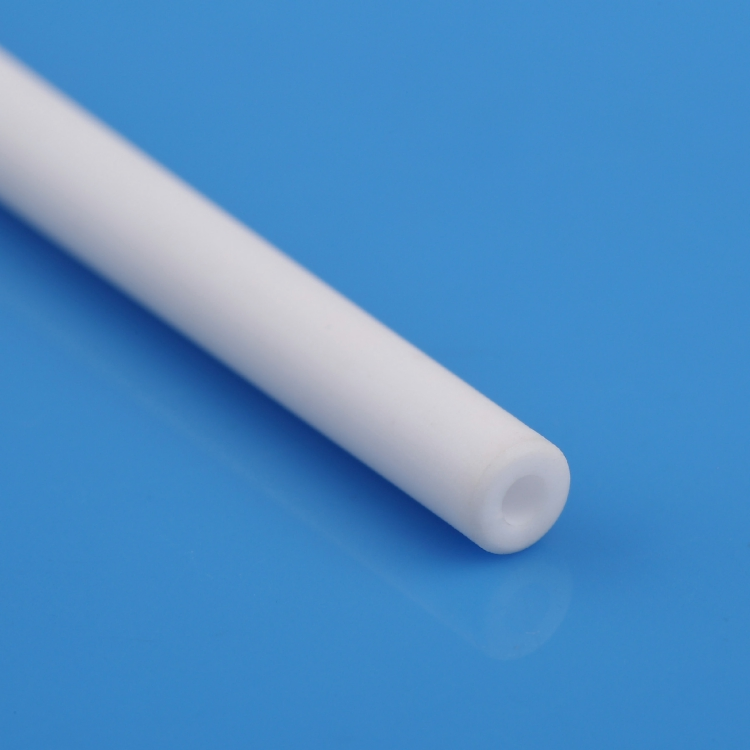

Industrial Zro2 Sleeve Ceramic Zirconia Ceramic Ferrule

Basic Specifications

Model NO.

Customized

Temperature Resistance

1000℃

Maximum Voltage

>100kv

Material

Ceramic

Thermal Rating

2200 ℃

Product Name

Flanged Zirconia Ceramic Tube

Surface Treatment

Diamond-Like Polishing

Chemistry

Inorganic Insulation

Certification

ISO9001

Specification

Max. OD to be 800mm

Origin

China

Production Capacity

5000000PCS/Month

Industrial ZrO2 Sleeve & Zirconia Ferrule

Main Characteristics

✔ Excellent wear resistance (276x higher than stainless steel)

✔ High density (> 6 g/cm3)

✔ Exceptional hardness (> 1300 MPa Vicker)

✔ Extreme temperature resistance (up to 2400°C)

✔ Low thermal conductivity (< 3 W/m.k)

✔ Superior fracture toughness (up to 8 Mpa m1/2)

✔ Chemical inertness and rust-proof aging resistance

✔ Resistance to molten metals

Technical Specification

Category	Details
Material Options	Zirconia (ZrO2), Alumina(Al2O3), Silicon carbide(SiO2), Silicon nitride(Si3N4)
Forming Methods	Dry pressed, Ceramic injection molding, Hot pressed, ISO pressed
Available Types	Flanged tubes, slotted tubes, one-end closed tubes, square tubes
Size Range	OD: 1 to 50mm, Length: 10mm to 500mm
Precision Processing	CNC machining, Precision grinding, Polishing, Lapping
Tolerance	Up to 0.001mm for OD, ID and Length
Surface Quality	Mirror surface better than Ra0.1, free of cracks

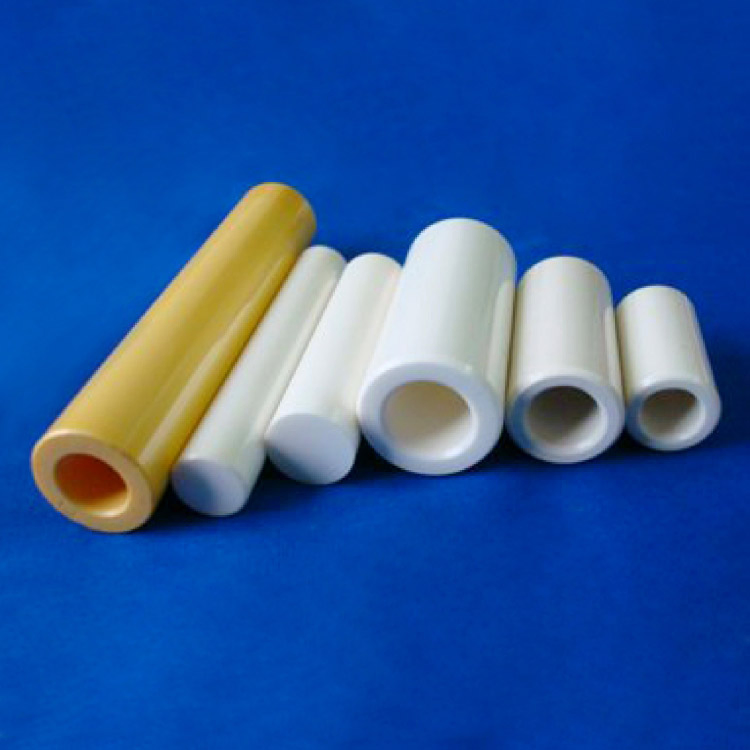

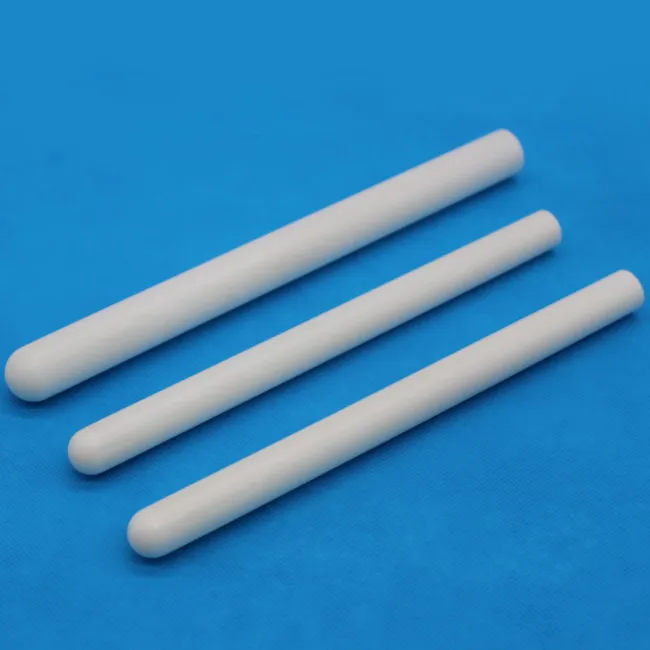

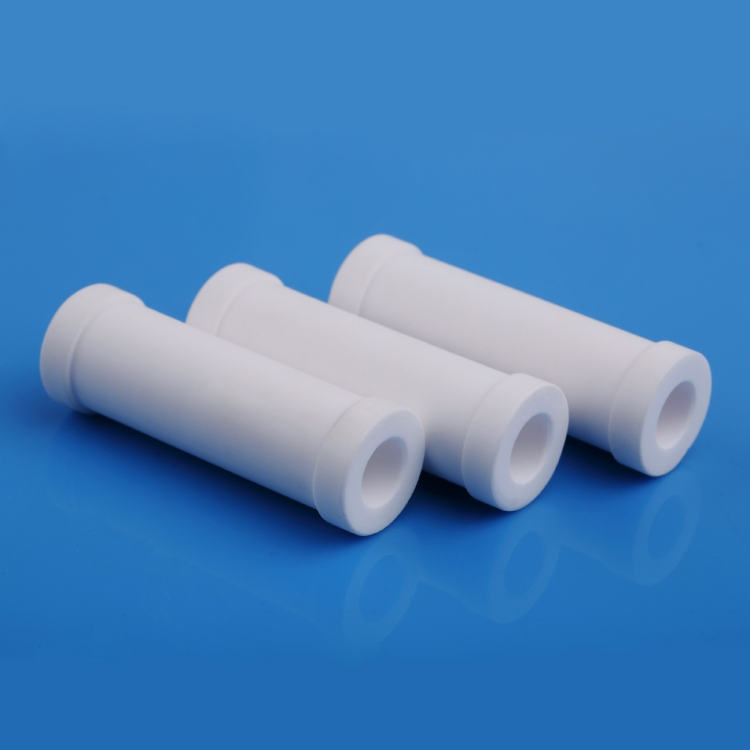

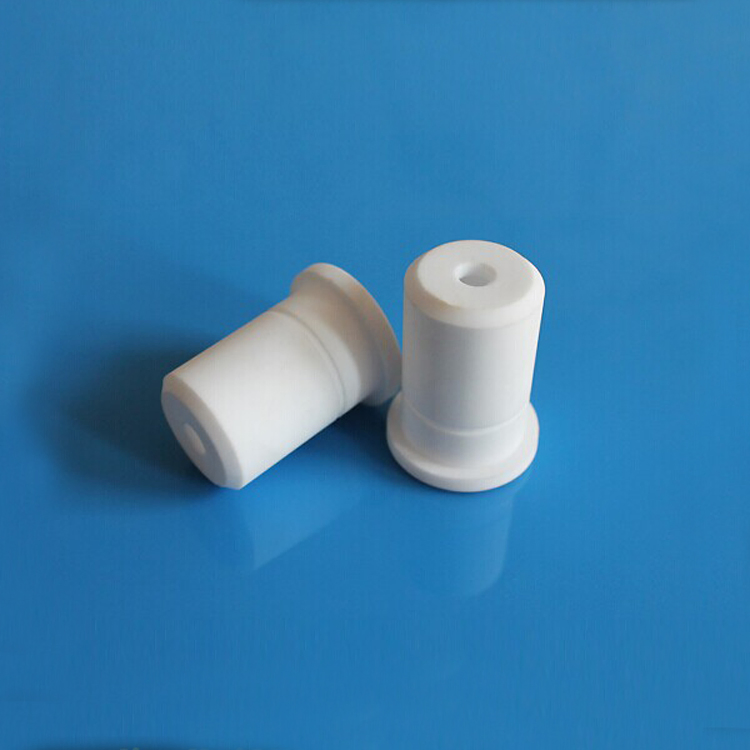

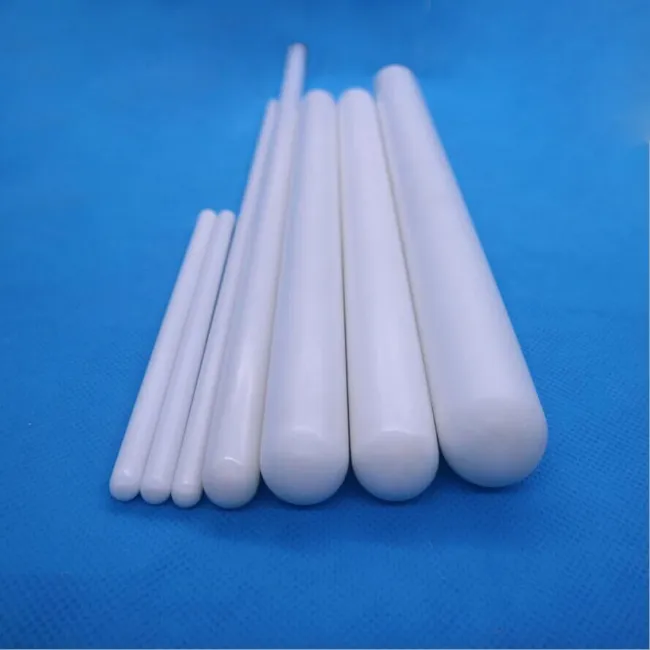

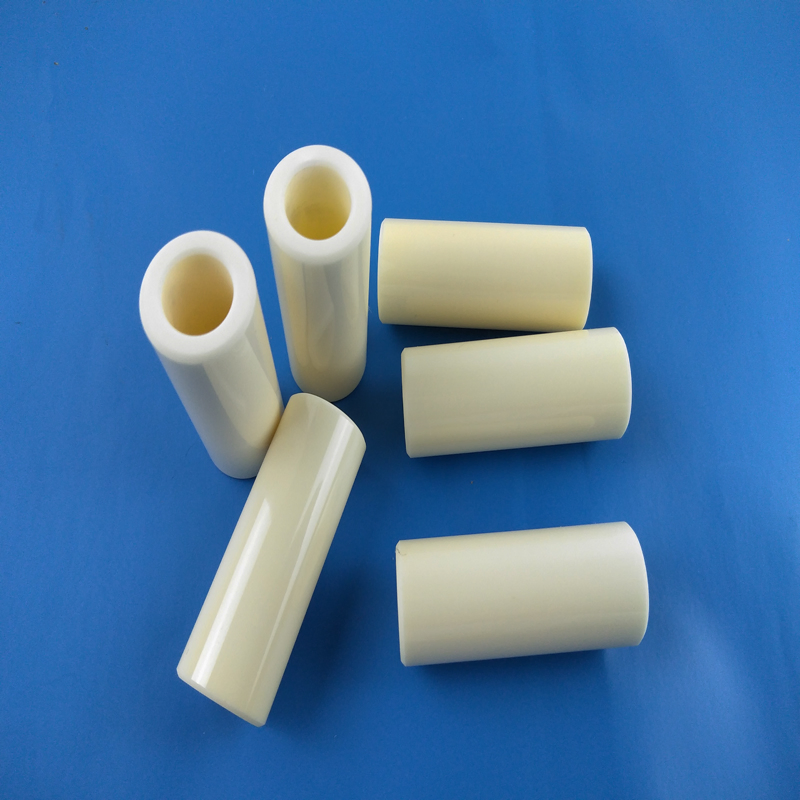

Product Gallery

Technical Datasheet

Property	Units	99.5% Alumina	ZrO2 (Y-TZP)	ZrO2 (TTZ)
Density	g/cm³	≥3.85	≥5.95	≥5.72
Hardness	HV	1700	1300	900
Flexural strength	Mpa	≥379	≥1200	≥1200
Compressive strength	Mpa	≥2240	≥1990	1750
Fracture toughness	Mpa m1/2	4-5	6.5-8	11
Max. service temp.	ºC	1675	1000	-
Thermal conductivity	W/m.k	30	3	3
Insulation strength	KV/mm	19	17	20

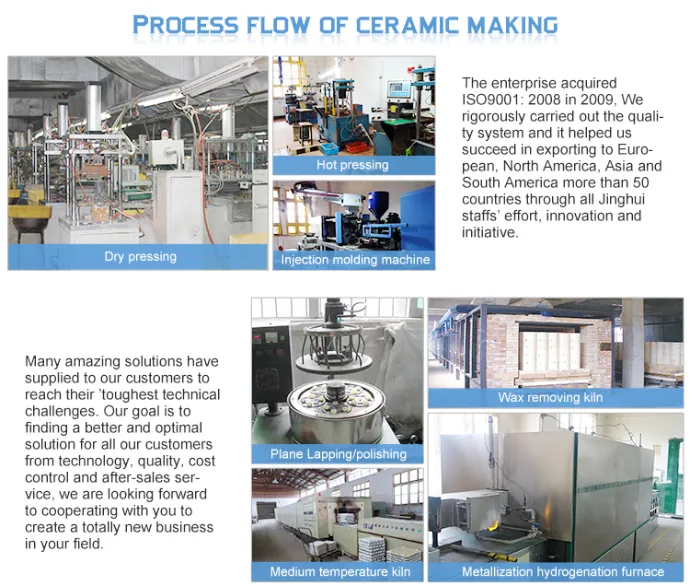

Manufacturing Flow Chart

Comprehensive in-house manufacturing including forming, sintering, CNC machining, precision grinding, and laser cutting for total quality and cost control.

Frequently Asked Questions

Q1: What are the primary advantages of Zirconia (ZrO2) ceramics? Zirconia offers exceptional wear resistance, high fracture toughness, and a thermal expansion coefficient similar to stainless steel, making it ideal for high-stress industrial applications.

Q2: Can I get customized dimensions for ceramic tubes? Yes, we support custom-made demands including specific materials, dimensions (OD 1-50mm, length 10-500mm), and complex designs like flanged or slotted tubes.

Q3: What level of precision can be achieved? Through precision grinding and CNC machining, we can achieve tolerances for OD, ID, and length as tight as 0.001mm.

Q4: Are samples available for quality testing? Yes, samples can be provided for evaluation. Please contact our team for availability regarding specific materials and sizes.

Q5: What is the lead time for shipping? For products currently in storage, items are typically shipped within 48 hours. Custom orders depend on the manufacturing complexity.

Q6: How does Zirconia handle high temperatures? Pure Zirconia can withstand temperatures up to 2400°C. However, the maximum service temperature for specific stabilized grades like Y-TZP is typically around 1000°C.
