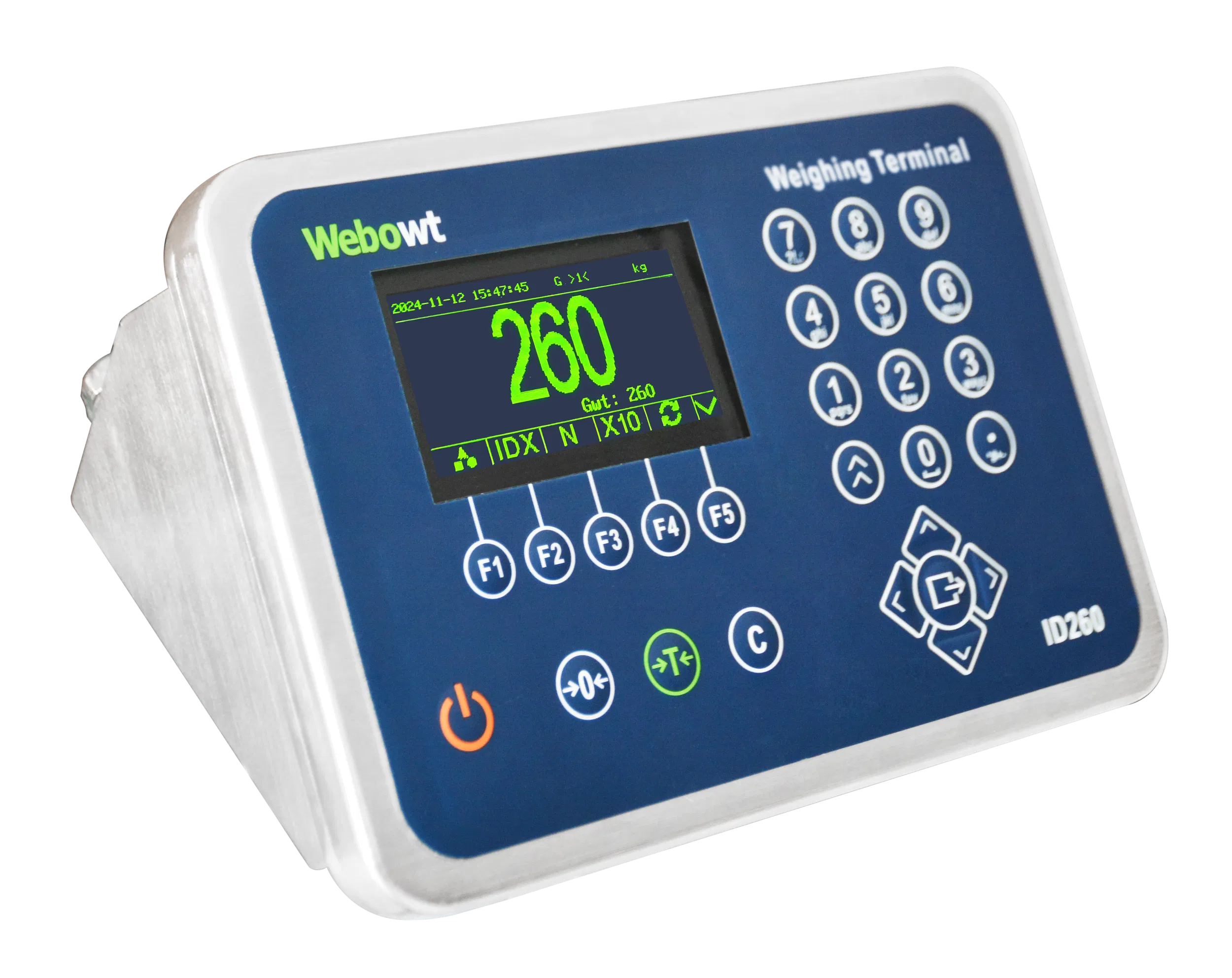

OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
1 / 5
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance
OLED Display Industrial Indicator Reliable Performance

OLED Display Industrial Indicator Reliable Performance

Customization: Available
After-sales Service: Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
ID260
Accuracy
0.1g
Display Type
LED
Display Digits
6 digits
Measure Method
Semi-Automatic
Shell Material
Stainless Steel
Application
Commercial
Origin
China
HS Code
8423900010
Production Capacity
5000piece/Year
Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
2.000kg
Product Description

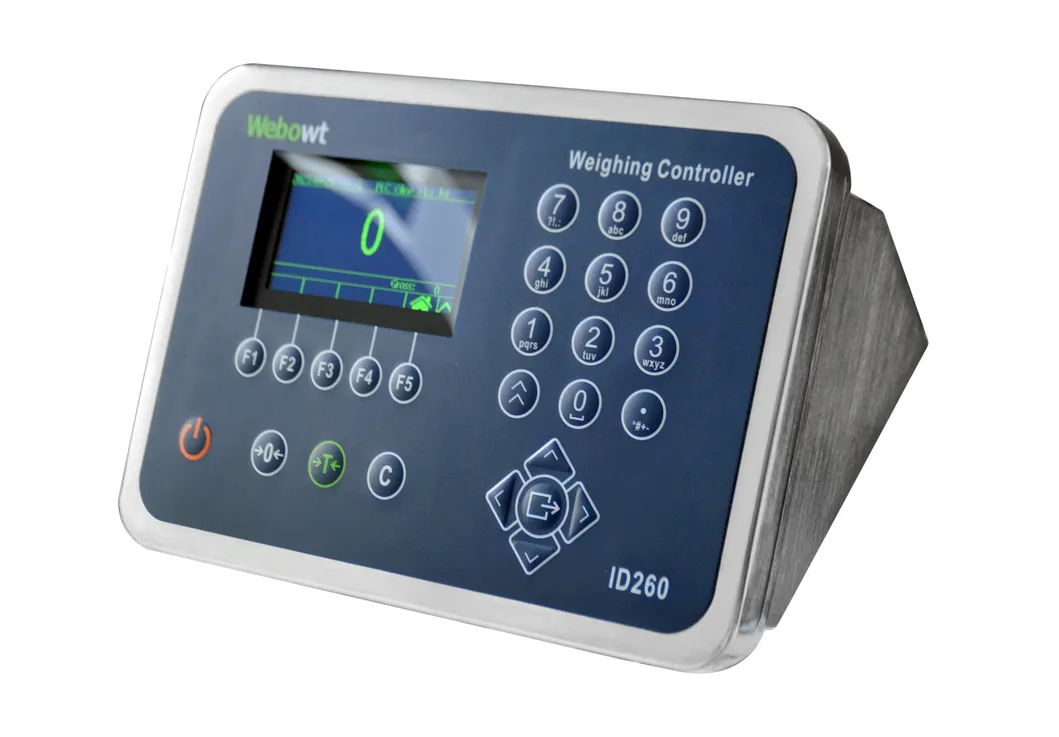

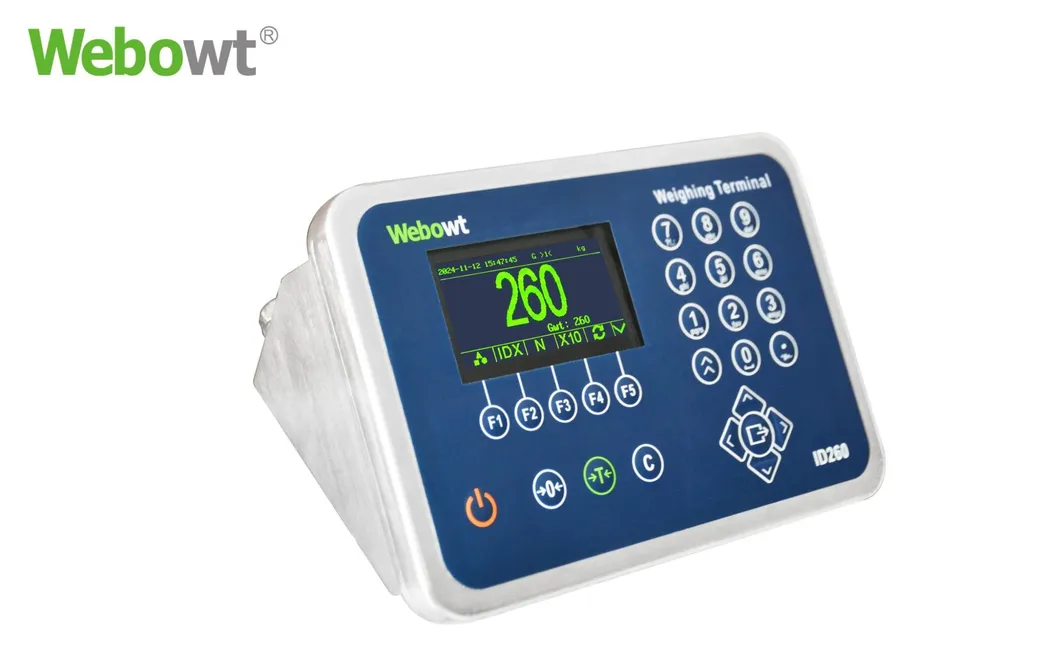

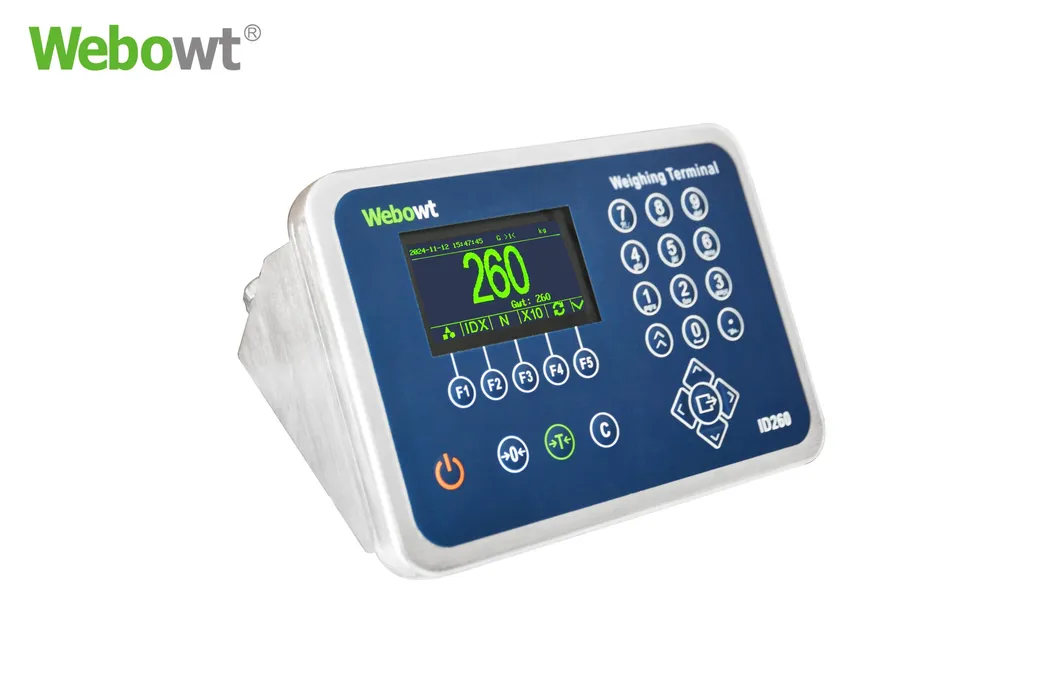

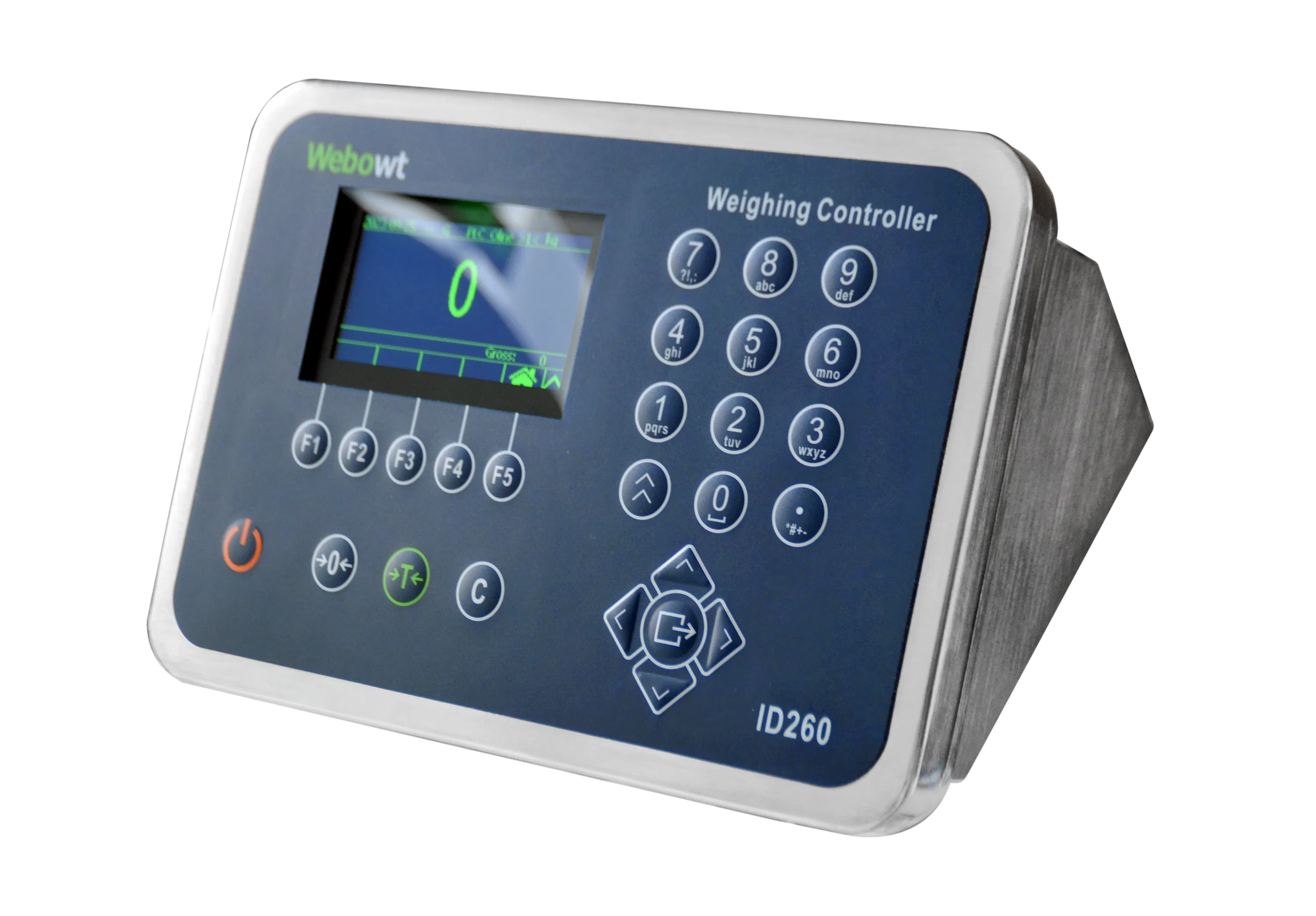

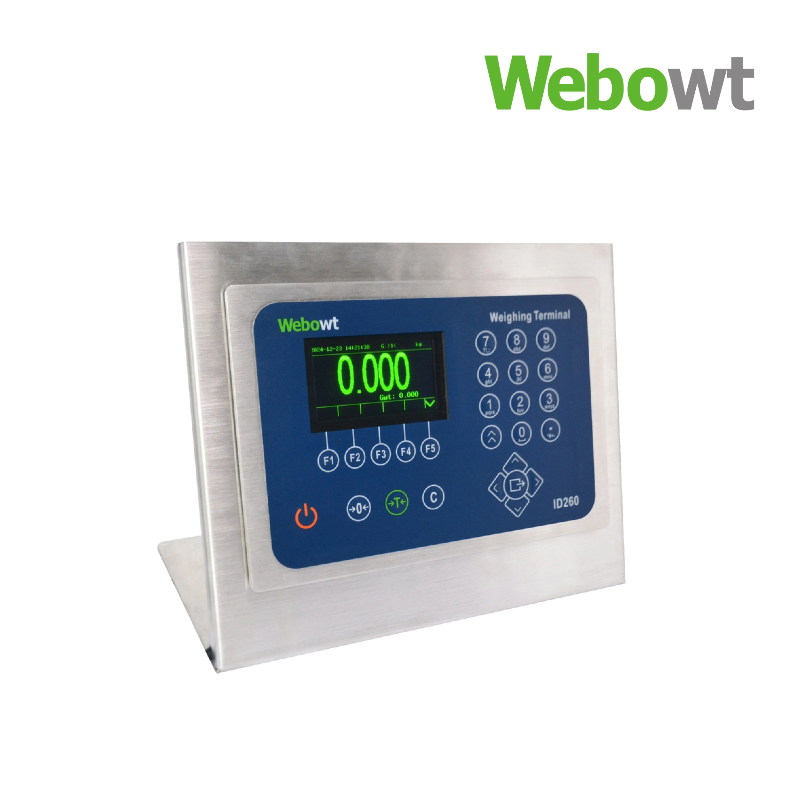

Industrial Indicator
1
Crafted with robust stainless steel housing, offering IP66/IP67 protection for unmatched durability in demanding environments.
2
Equipped with a vibrant OLED display, featuring a green graphical interface supporting multi-language large font display.
3
Intuitive keyboard design with 12 alphanumeric keys, 9 function keys, and independent power button.
4
Analog scale support for up to six 350-ohm analog load cells, providing precision and flexibility.
5
Comprehensive connectivity: RS232, RS485, USB standard; Optional Ethernet and WiFi.
6
I/O versatility with optional 4 inputs and 6 outputs for customized system integration.
7
Dual power options: 100-240VAC AC power supply or built-in rechargeable battery.
8
Printer and scanner support with three label printing modes: normal, counting, and checkweighing.
Selection and Configuration
Model Housing Type Display Interface I/O Options Power Supply
ID260 H0/R0/S0/D0 (General)
H1/R1/S1/D0 (Hygienic)

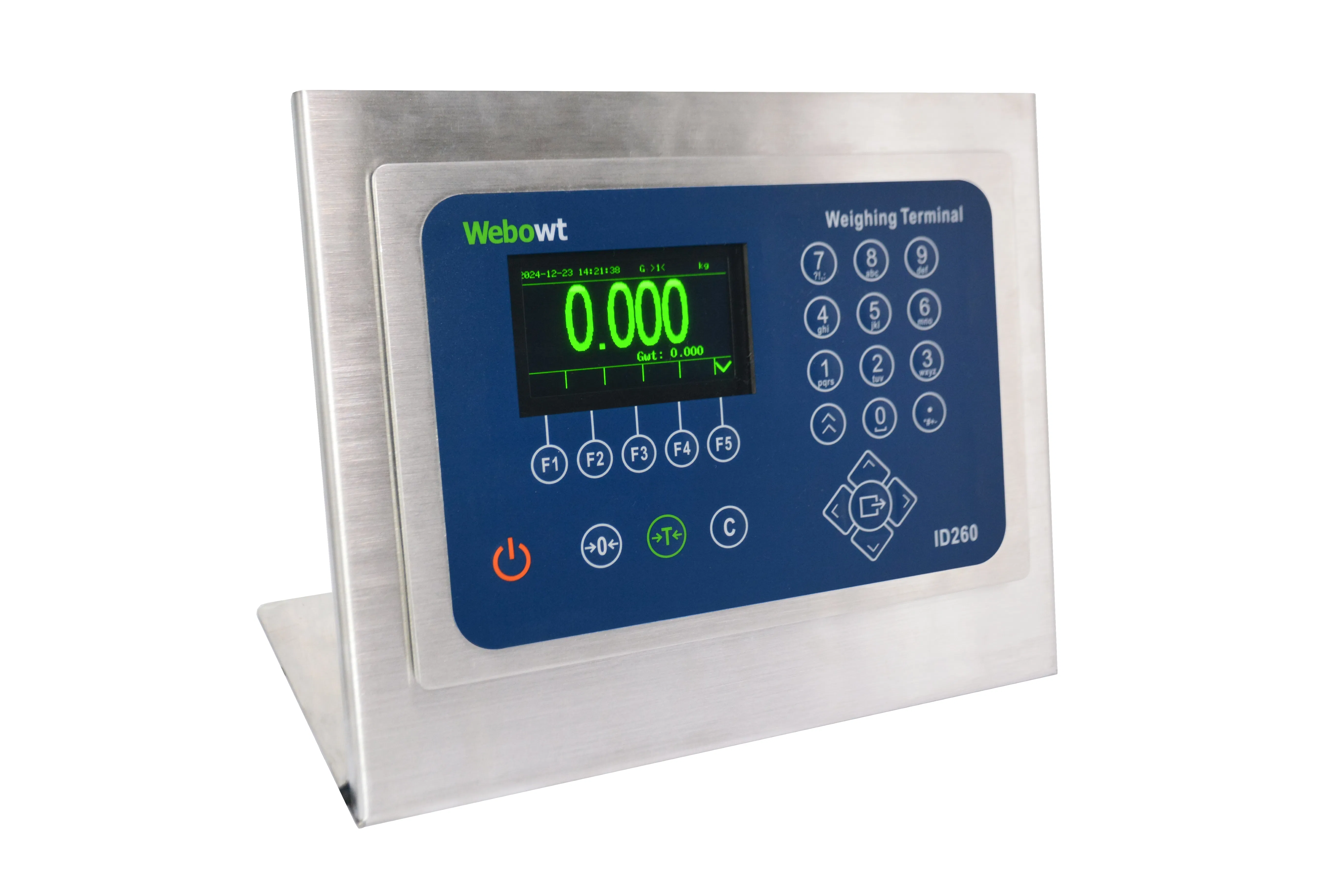

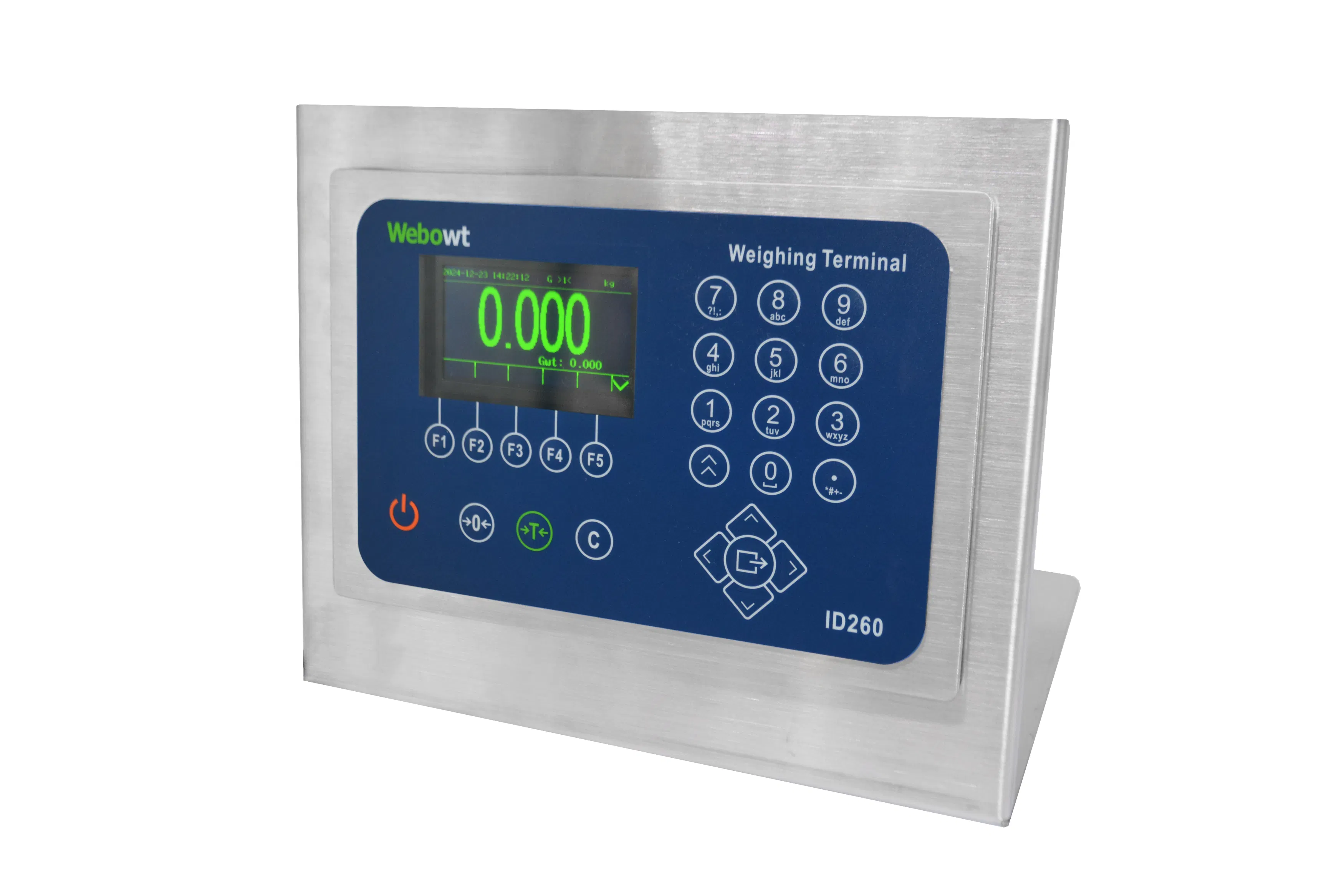

P0 (Panel)		 E: OLED 0: RS232+RS485
1: +USB
2: +WIFI
4: +LAN		 0: None
1: INx4/OUTx6
2: +Alarm Light		 A/G/U/C/B/H/E/F (Various Global Plugs)
Optional Battery
Dimensions & Installation
Installation 1
Installation 2
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Frequently Asked Questions
What is the protection level of the ID260 indicator?
The ID260 features a robust stainless steel housing with IP66/IP67 protection, making it suitable for harsh industrial environments.
Does the display support multiple languages?
Yes, the vibrant OLED display supports a graphical interface for Chinese, English, and other languages with a large font for easy reading.
What are the connectivity options available?
Standard interfaces include RS232, RS485, and USB. Optional configurations for Ethernet (LAN) and WiFi are also available.
Can this indicator be used with a battery?
Yes, it can be powered by a standard 100-240VAC supply or an optional built-in rechargeable battery for mobile applications.
What printing modes are supported?
The device supports three label printing modes: normal mode, counting mode, and checkweighing mode.
How many load cells can it connect to?
The ID260 supports up to six 350-ohm analog load cells.
