| Technical Parameters | DSP10000Q |
| 8 ohm Stereo Power (RMS) | 1300WX4 |
| 4 ohm Stereo Power (RMS) | 2100WX4 |
| 8 ohm Bridged Power (RMS) | 4200WX2 |
| 4 ohm Bridged Power (RMS) | 5000WX2 |
| Frequency Response(+o/-0.3dB, 1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |

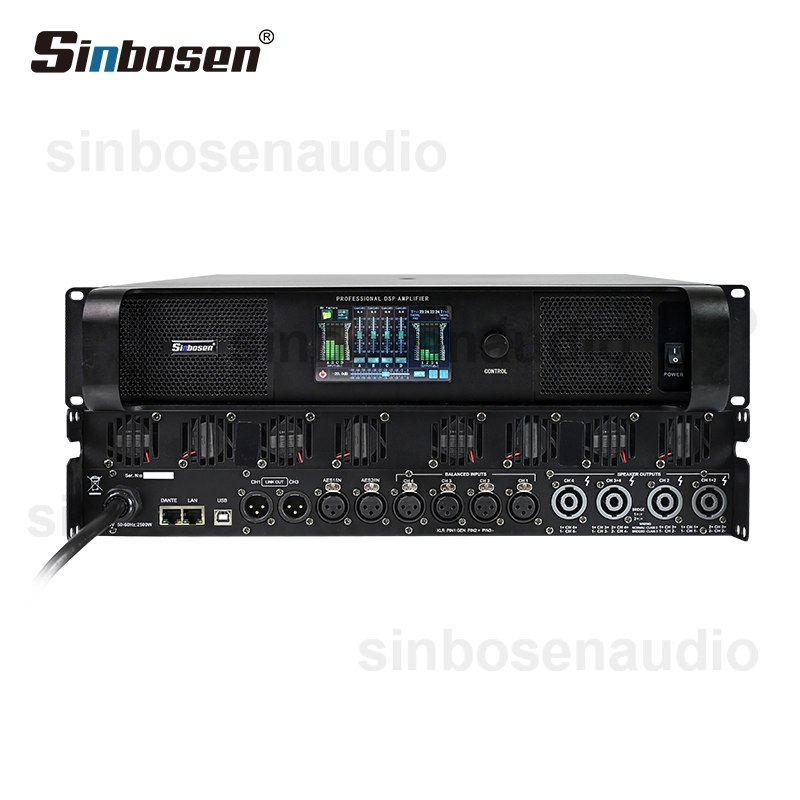

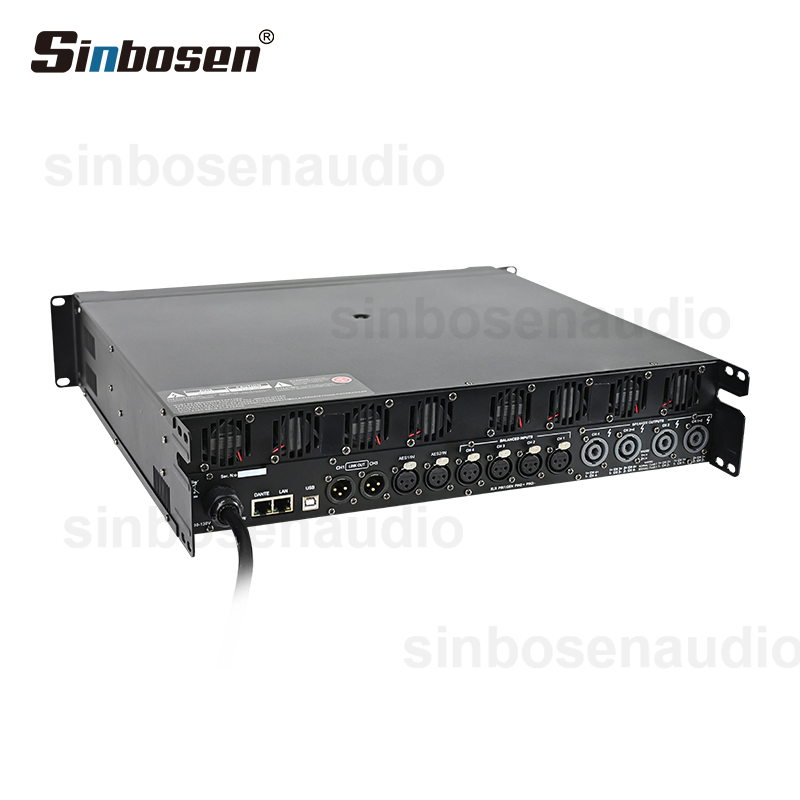

| Input Connectors (per channel) | 3 pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage | 180-240 V / 90-130 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |

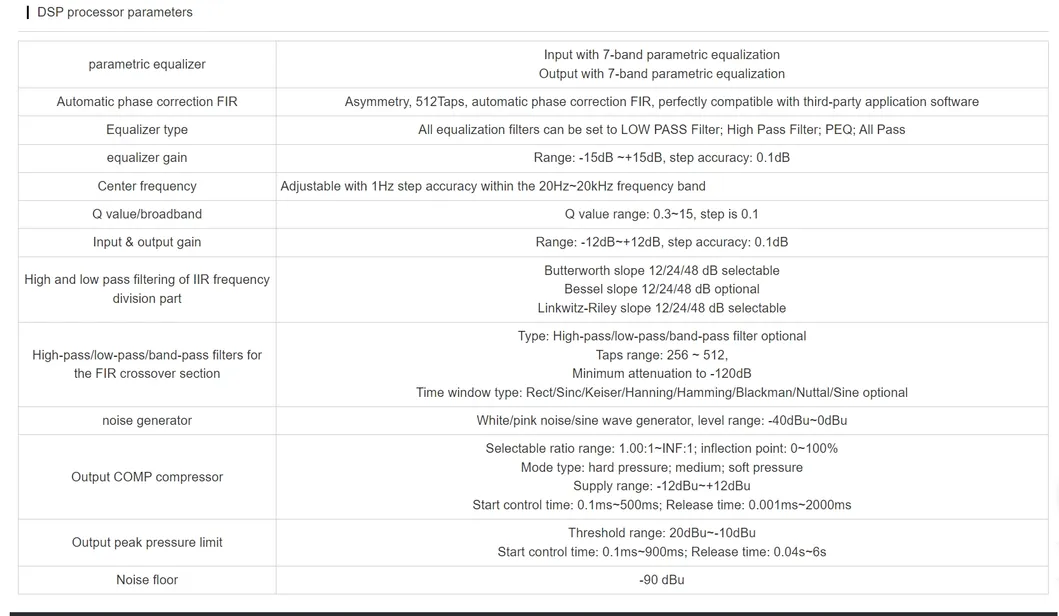

| 1. 48kHz sampling frequency DSP processor, 24-bit A/D and D/A conversion; 4 inputs and 4 outputs. |
| 2. Flexible input modes: Analog, AES digital signal, and DANTE with automatic priority switching. |
| 3. Real-time visual temperature monitoring on the display screen. |
| 4. PRO indicator light for instant amplifier protection state feedback. |
| 5. Quick copy function for synchronized parameter adjustment across channels. |
| 6. Integrated signal generator: White noise, pink noise, sine wave signals. |

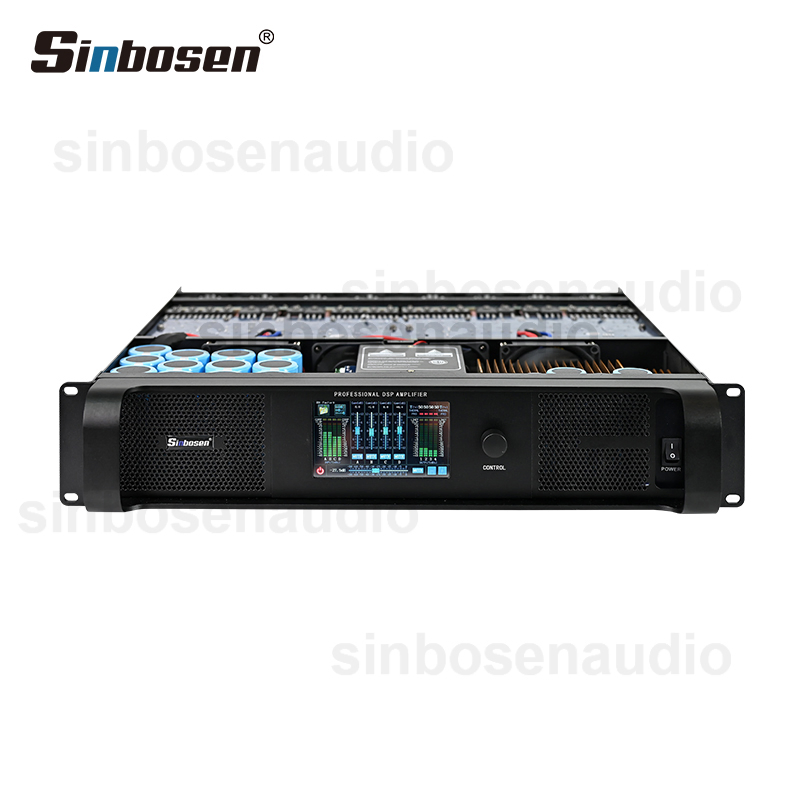

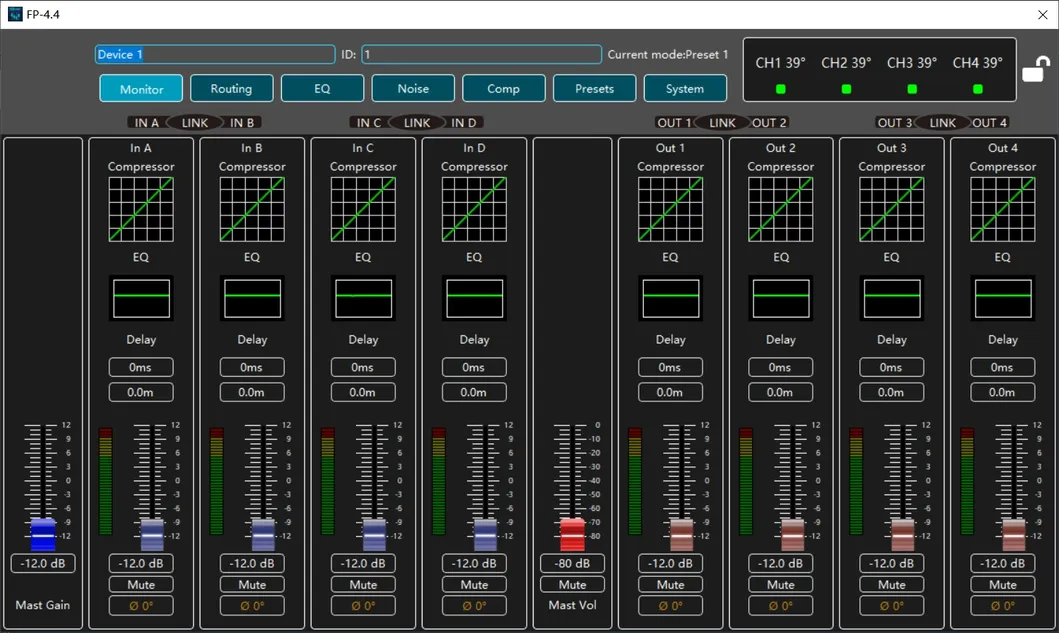

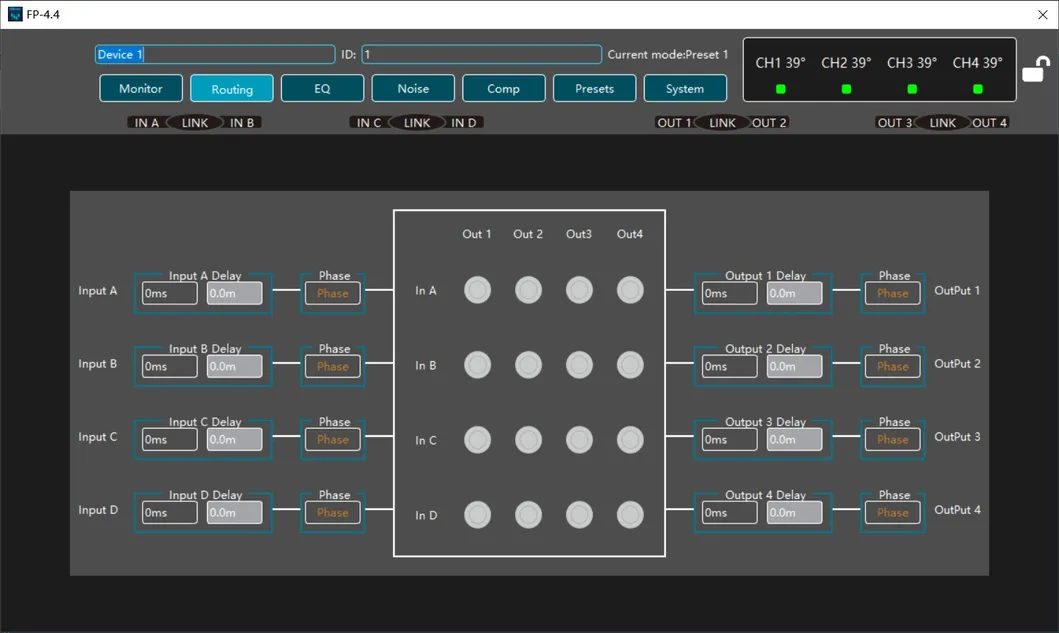

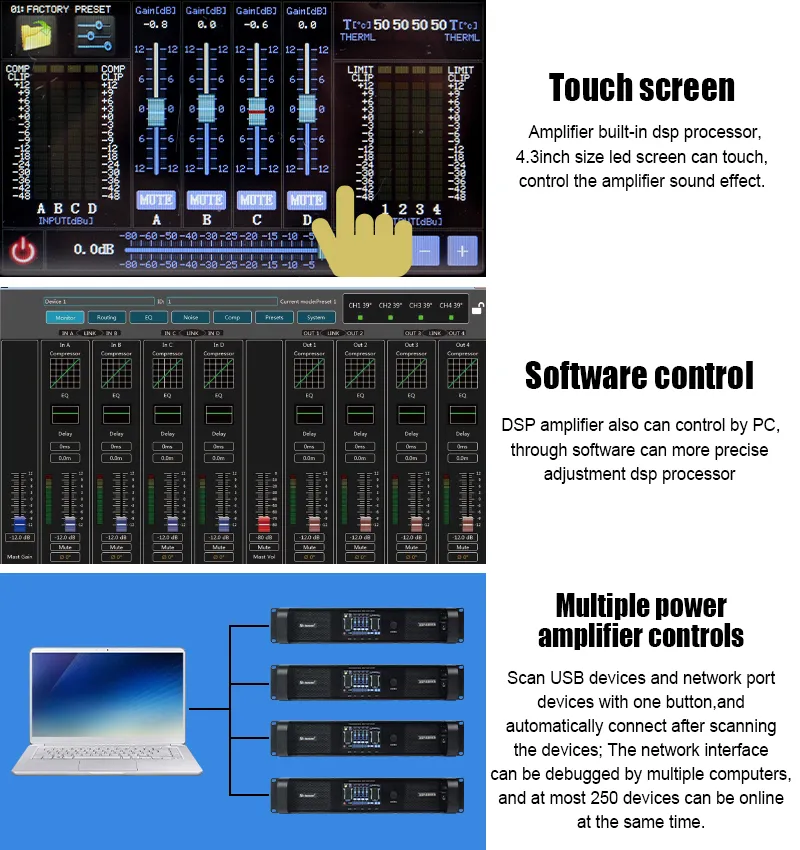

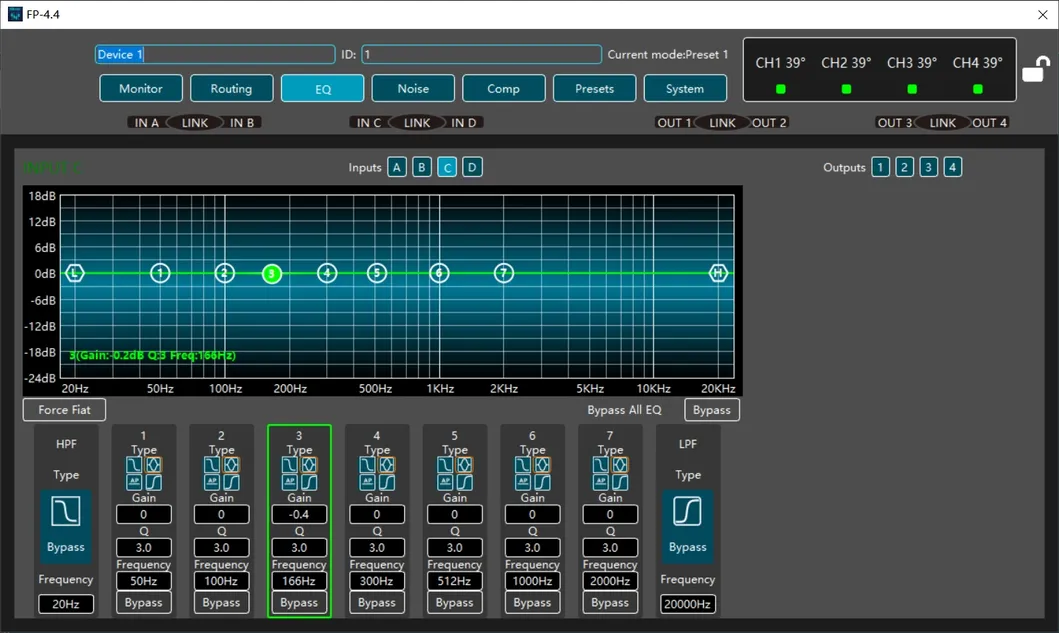

| 7. 4.3-inch touch screen panel for direct local control or remote PC software control. |
| 8. Internal storage for up to 30 user programs for quick recall. |
| 9. Device locking system via software or panel to prevent accidental misoperation. |
