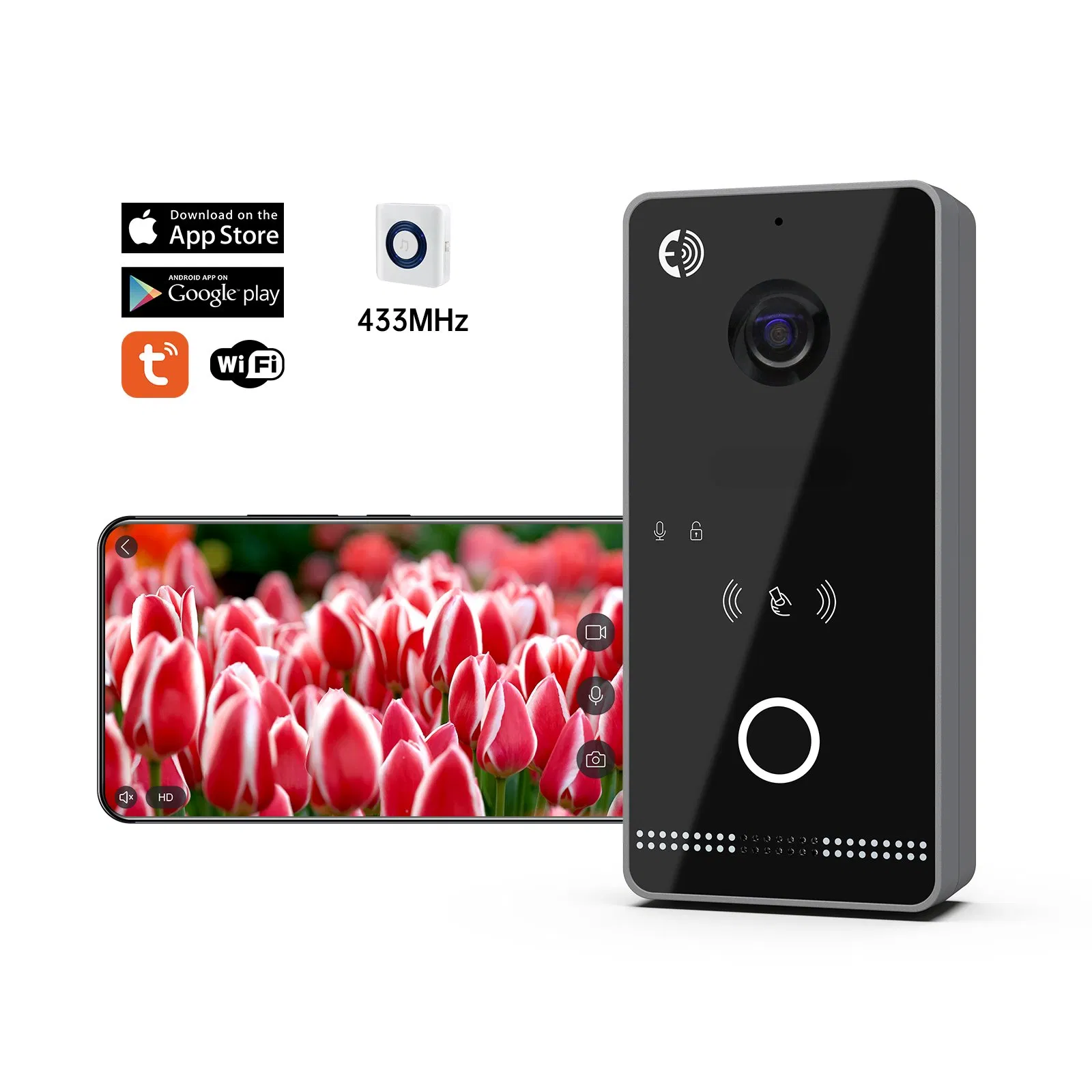

Tuya Smart Video Doorphone Intercom with RFID Unlock Wireless Doorbells

Basic Information

Model NO.

ED007BICW

Color

White/Black

Voice Service

With Voice Service

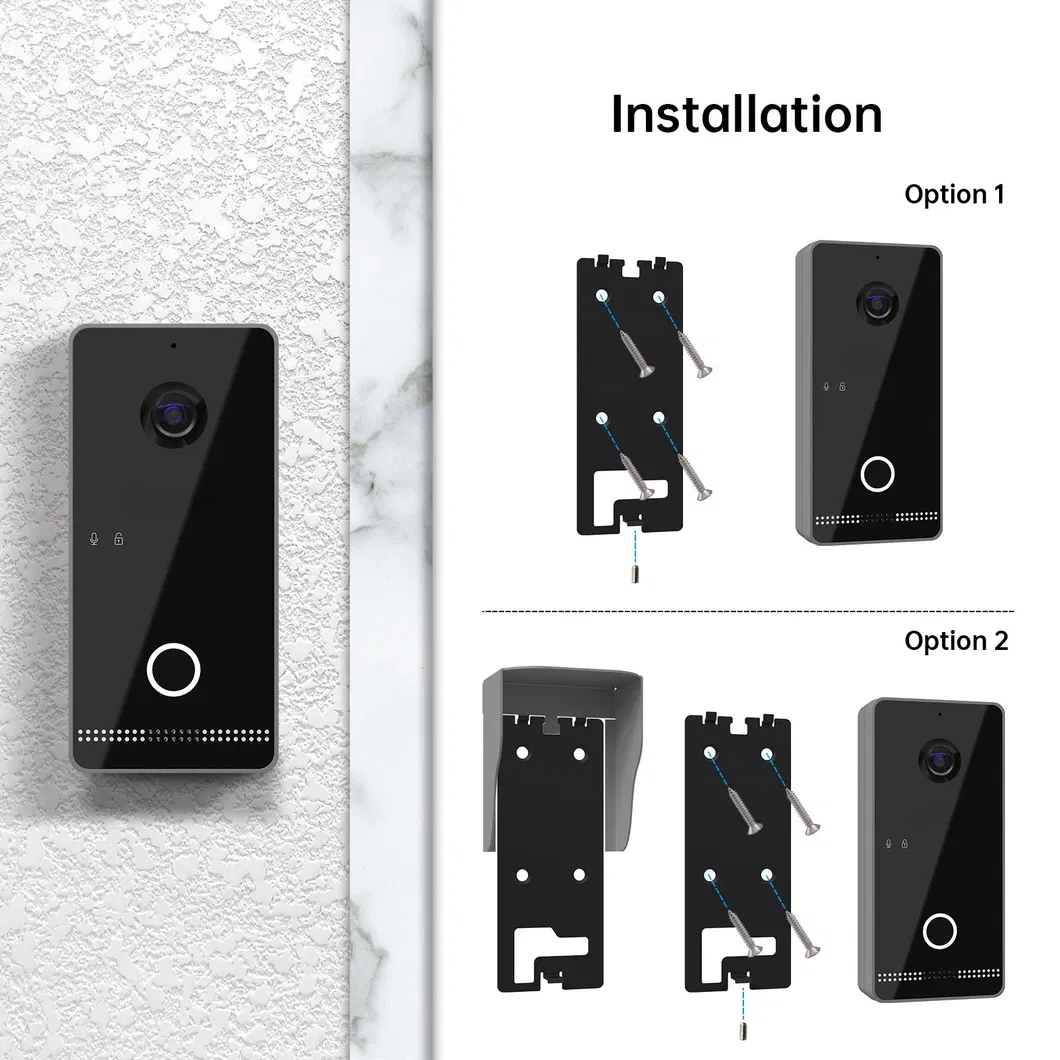

Installation

Surface-Mounted

Certification

RoHS, FCC, CE, ISO9001

Camera

2MP HD Camera

Angle of View

125°

Protection

IP65, IK07

Temp Range

-30°C~+60°C

Wi-Fi

2.4G & 5G

Mobile APP

Tuya Smart (iOS, Android)

Origin

China

Product Description

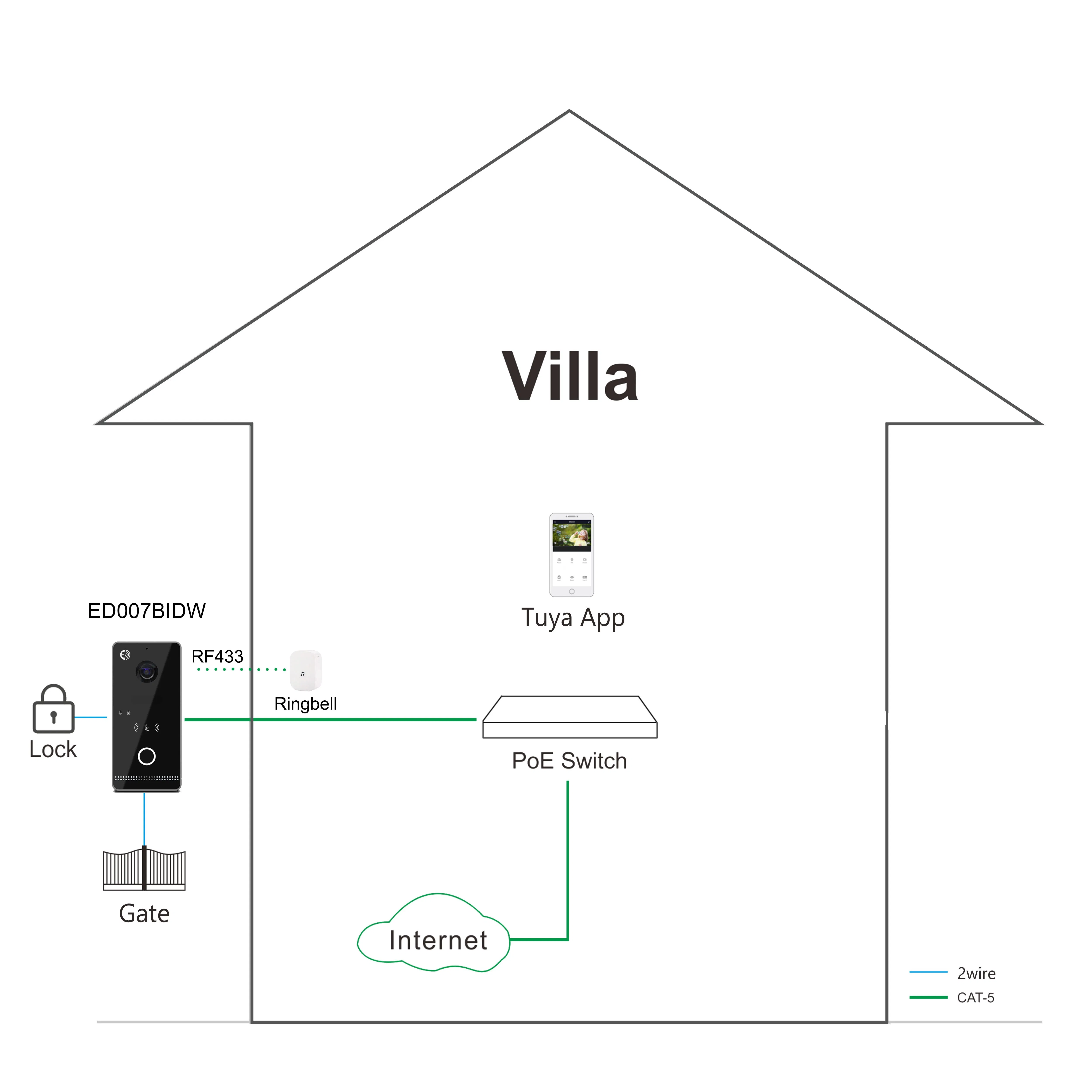

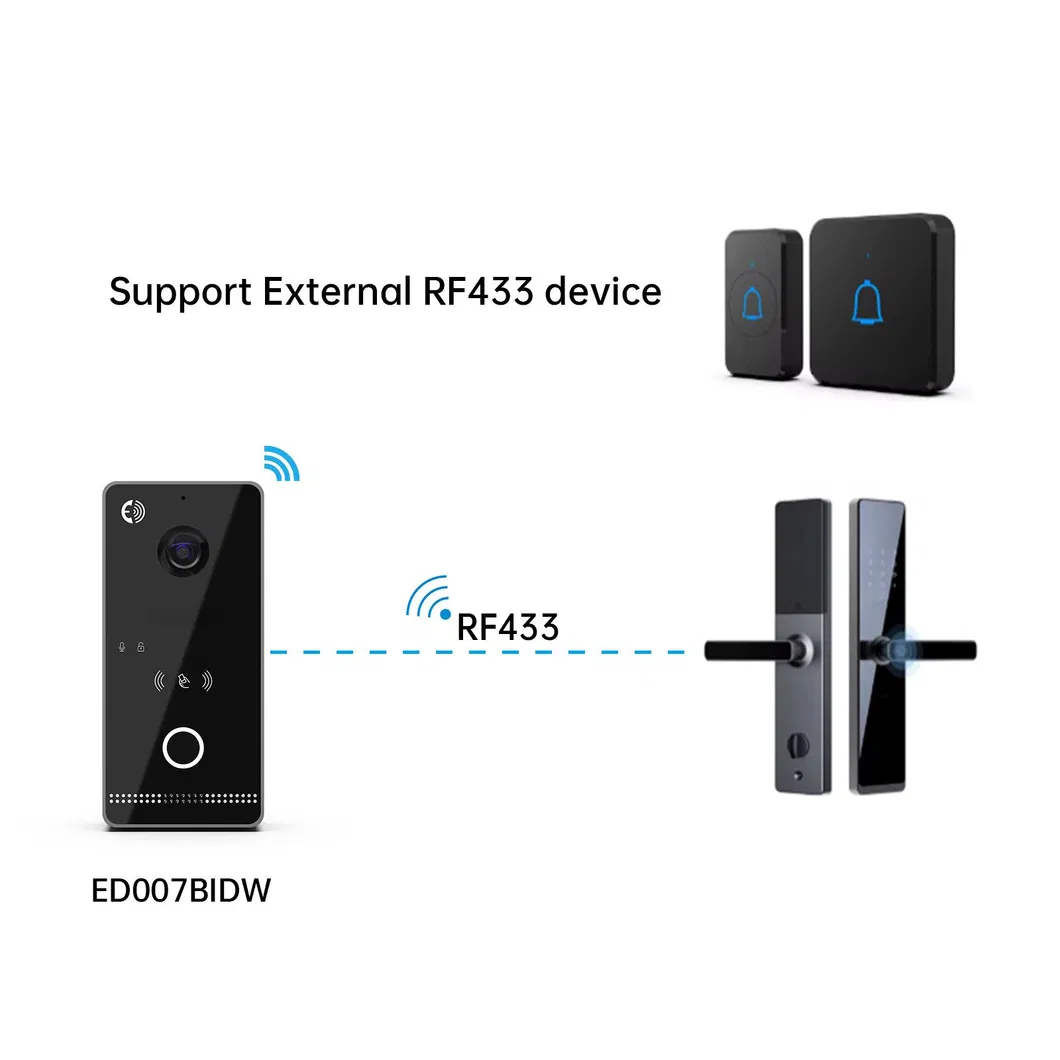

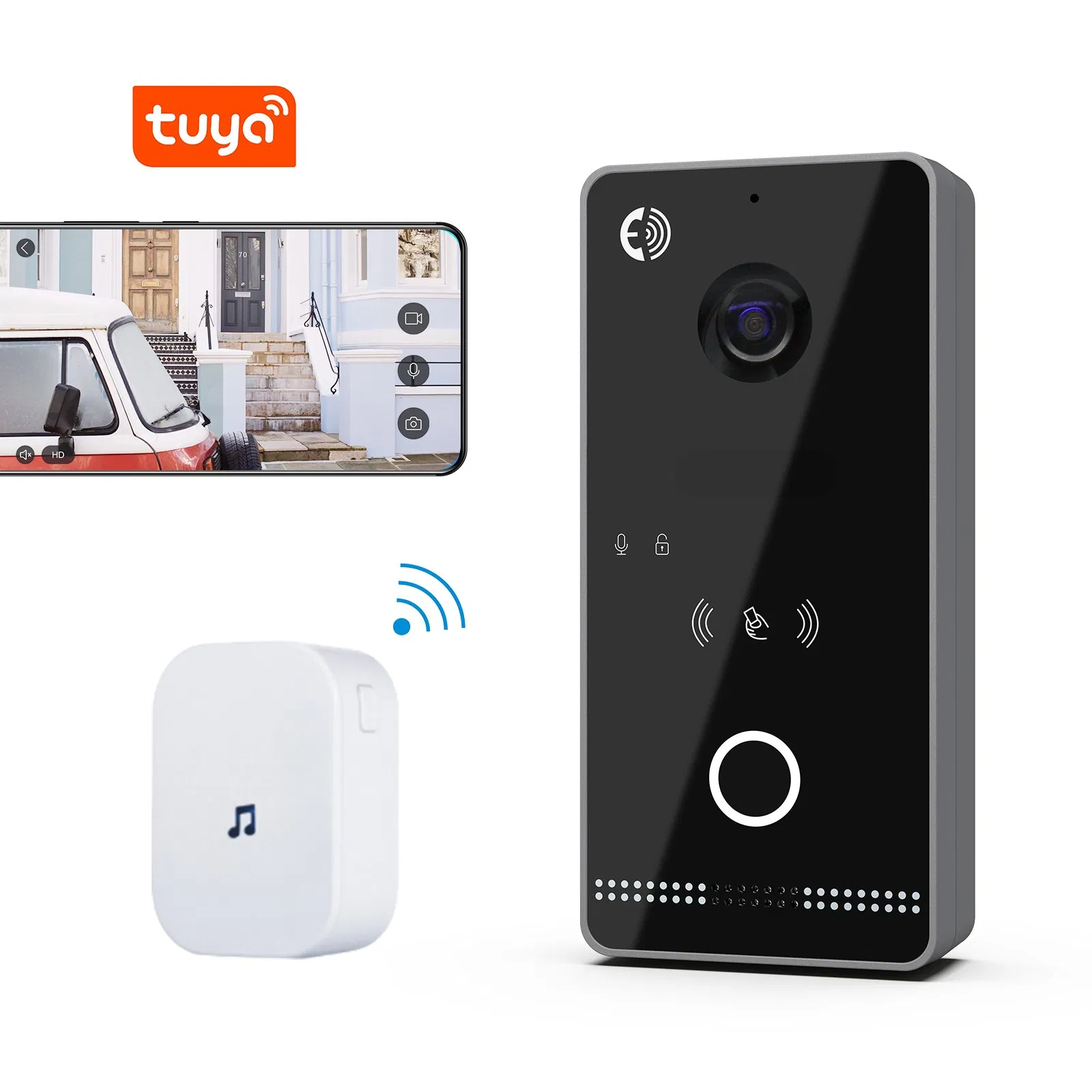

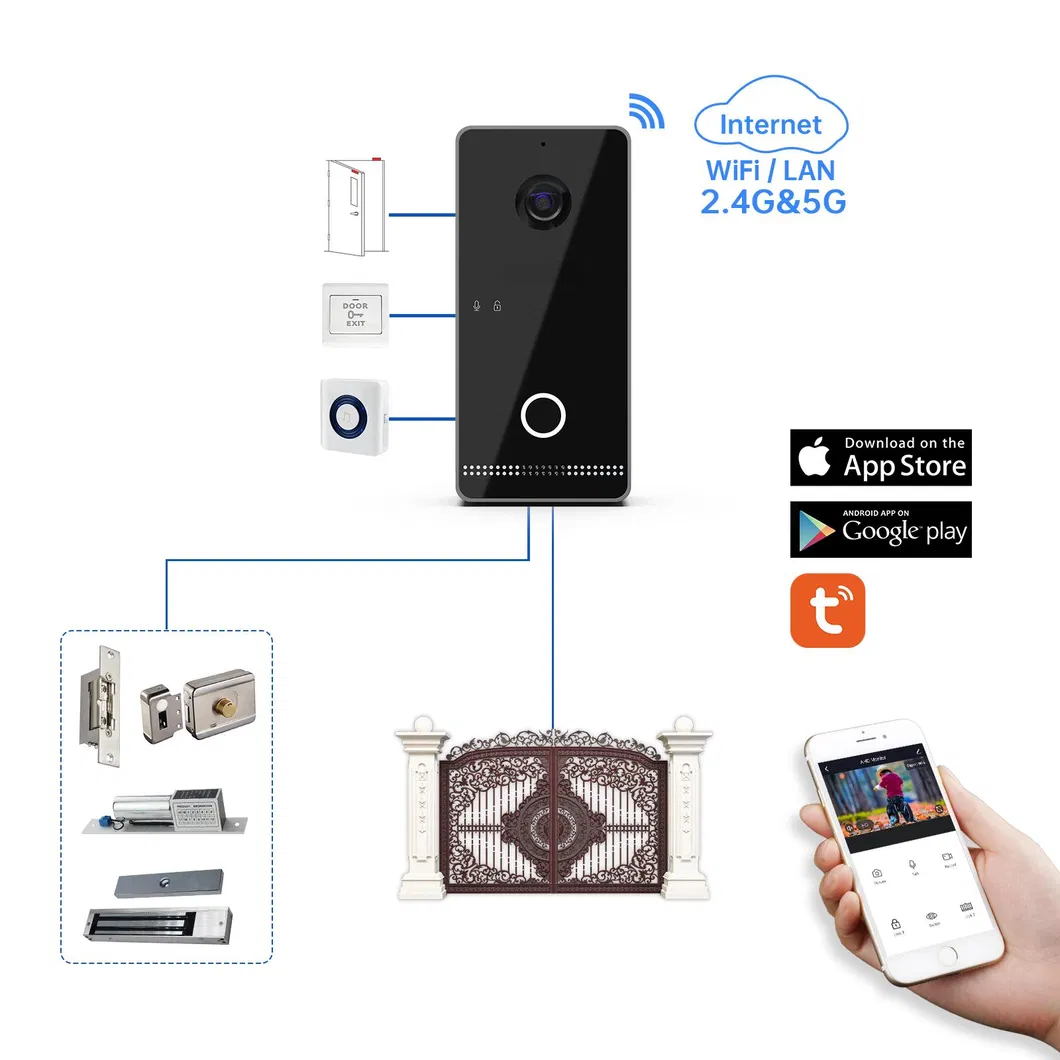

TCP/IP Wifi Tuya Smart Intercom System with RF433 & RFID Unlock Wireless Doorbells Home Security Villa Panel.

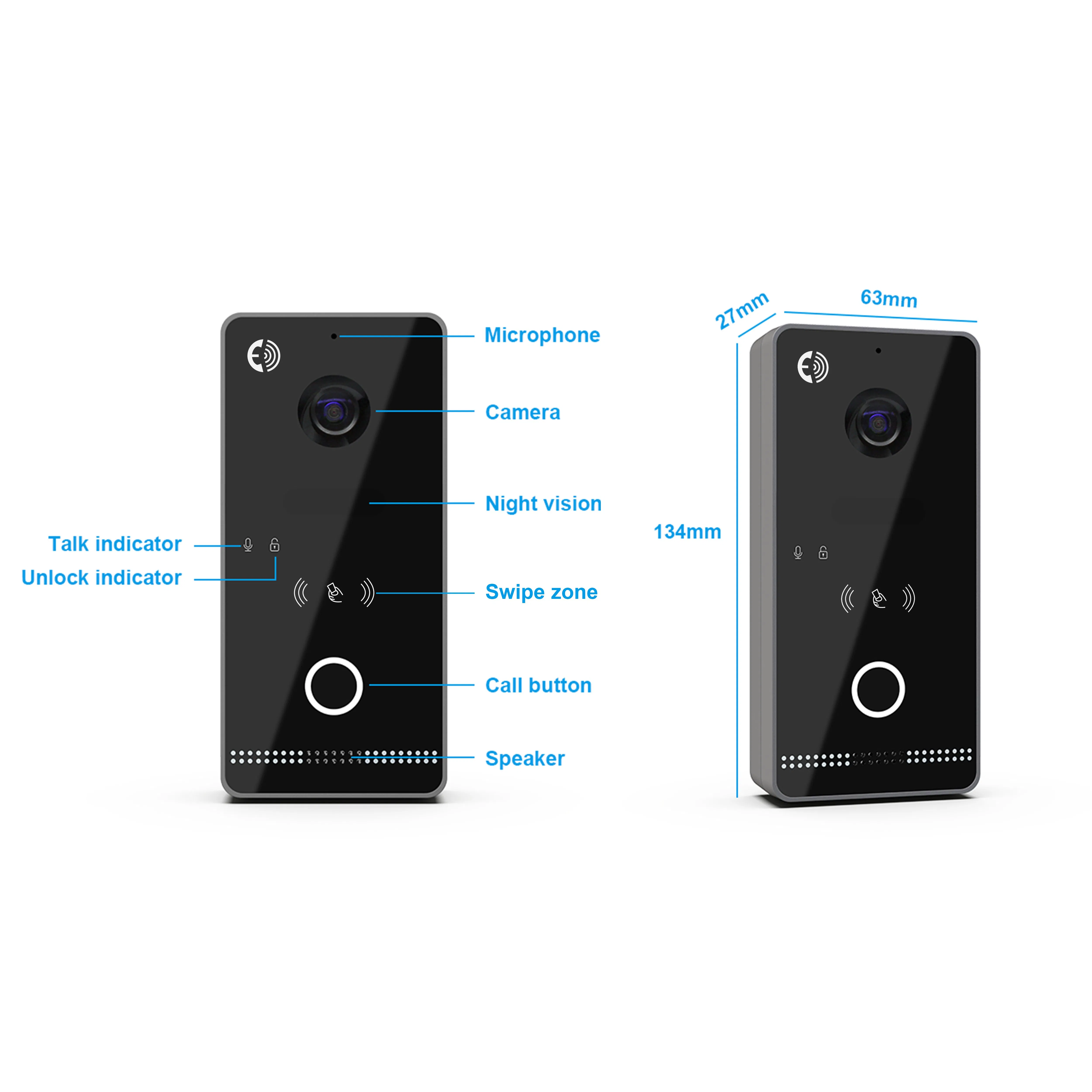

Detailed Photos

Product Parameters

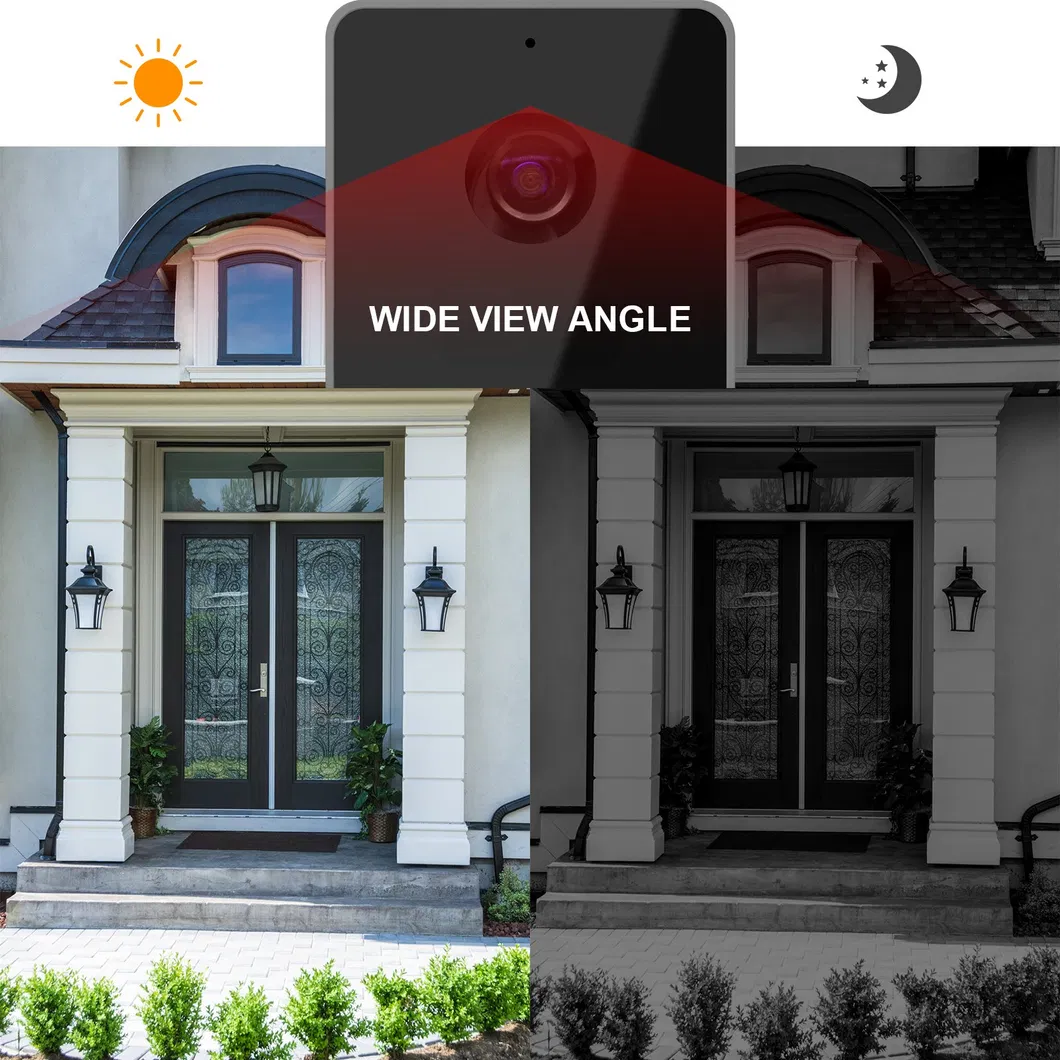

2MP super definition camera with 125° wide angle

Support H.265 & H.264 compression

Dual-Brand WiFi 2.4GHz & 5GHz

Human motion detection and instant alerts

POE IEEE 802.3af & DC12-48V power supply

IK07 & IP65 waterproof and vandal-proof

Technical Specifications
System	Processor	High-performance embedded SOC processor
System	OS	Embedded Linux
Video	Lens	1/2.8" 2MP CMOS low illumination camera
	FOV	H:125° ,V:72°, D:150°
	Pixel	Main: 1080P/720P; Sub: 640x360
Audio	Mode	Full duplex intercom
Audio	Quality	Noise suppression and echo cancellation
Network	Protocol	TCP/IP, RTSP
	Wi-Fi	2.4GHz & 5GHz 802.11 a/b/g/n
	Wired	10M / 100M adaptive belt POE
General	Protection	IK07; IP65
	RFID Card	125KHZ (ID)/ 13.56MHZ(IC); 1000 cards supported
	Environment	Outdoor (-40°C to +60°C)

Quality & Advantages

Certifications

All models have passed CE, RoHS, REACH certificates with a 2-year warranty.

Frequently Asked Questions

Can I get a sample to test first?

Yes, you are welcome to take samples to test our quality at any time.

Can you do OEM / ODM for customers?

Yes, we provide OEM & ODM services, including LOGO printing and gift box design according to your requirements.

What is your Minimum Order Quantity (MOQ)?

There is no MOQ for neutral models. For custom logos and gift boxes, the MOQ is 300 PCS per model.

What is the lead-time for orders?

Samples take 2-5 days. For bulk orders, the lead-time is approximately 25 working days after receiving the deposit.

What is the warranty period for your products?

We provide a 2-year warranty from the date of shipment.

Does this device support mobile remote unlocking?

Yes, it fully supports the Tuya Smart App for remote live video, two-way talk, and gate/lock control.
